Economical Heavy-duty Cable Cut Strip Solution

Economical Heavy-duty Cable Cut Strip Solution

JCW-CS18 Automatic Big Cable Cutting and Stripping Machine

Maximize the productivity of 70mm² power cable processing


Excellent capability

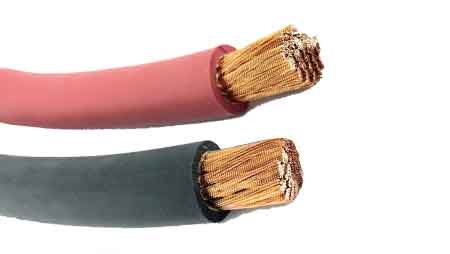

The JCW-CS18 cable cutting and stripping machine is designed for processing big cables up to 70sqmm. Both stranded wire and multicore cable belong to the processing range. Powerful cutter head, high torque stepper motor, and 8 rollers feeding system allow the JCW-CS18 cut and strip machine to process big battery cables easily and precisely.

This fully programmable cable stripping machine can save all of the parameters such as wire cutting length, stripping length, cutting speed, feeding speed, wire diameter, etc.


Build your automated product line

- Cable pre-feeding machine, load range from 15 to 1500 KG

- Robot arm controlled by CS18, simple setting

- Conveyor belt, 1 meter to 12 meters



ModelJCW-CS18 Automatic 70SQ Big Cable Cutting and Stripping Machine
Function

Single wire, Multicore cable, Wire measuring, Cut into length, Full stripping, Partial stripping, Cut depth, Cut speed, Feed speed, Safety door sensor

Raw materialPVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Conductor cross-sections4 - 70 mm²
Cable diameter Max 20 mm
Cutting length ( L )1 - 99999.9 mm
Cutting length accuracy
0.002 x L
Stripping lengthLeading ( left ) side: 1 - 270 mm
Trailing ( right ) side: 1 - 140 mm
Feeding system8 rollers
Production rate1500 pcs/h  [ depends on cutting length ]
Data library100 programs
OEMYes
Display4.3" color touchscreen, English / Chinese  [ other languages on request ]
Compatible peripheralsWire pre feeder, robot arm, conveyor belt
Power supply
AC 110 - 220 V ± 10%, 50 / 60 Hz
DimensionsL 620 x W 540 x H 410 mm
Weight85 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
