Discharge rollers automatically raised during stripping
Fully electric, no compressed air needed
Servo motorized cable feeding system
Servo motorized cable cutting structure
Fully programmable English software
200 programs data library
JCW-CS05D
Discharge rollers automatically raised during stripping
Fully electric, no compressed air needed
Servo motorized cable feeding system
Servo motorized cable cutting structure
Fully programmable English software
200 programs data library
Cut Strip Machine

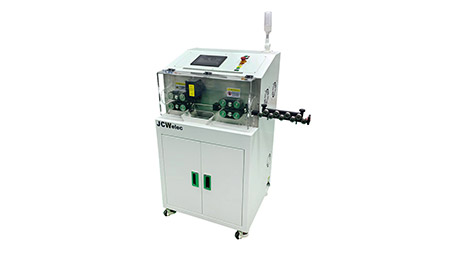

Servo Motorized Cutting and Stripping Machine For 50mm² Cable
JCW-CS05D is a floor-mounted computerized cable cut-and-strip unit built for cables up to 50mm².
The robust floor frame delivers excellent structural stability to sustain long-cycle, high-volume production within harness manufacturing workshops.
Powered by a high torque servo motor, it supplies reliable and steady output force for cutting and stripping. The computerized control system locks in repeatable stripping sizes and length accuracy across batches.
Belt feeding moves cables smoothly without scratching or compressing the outer jacket. Multiple cable recipes can be stored for quick changeovers between different wire specifications.
JCW-CS05D connects smoothly with cable despool machine and output conveyor to form a continuous production line, suitable for standardized cable pre-processing.
Multi-language user interface is offered to meet global factory requirements.
Model | JCW-CS05D Computerized Cutting and Stripping Machine For 50mm² Cable |
Function | Fully electric, Single wire, Multicore cable, Wire measuring, Cut length, Full stripping, Partial stripping, Mid-stripping, Cut depth, Length correction |
Raw material | PVC, Teflon, Silicone, Low halogen, Fiberglass, etc |
Capacity | 2.5 - 50 mm² |
Cable O.D | Max 16 mm |
Cable guide | 4 sets equipped. I.D 7 / 10 / 13 / 17 mm |
Cutting length ( L ) | 0.1 - 999999 mm |
Cutting length accuracy | 0.002 x L |
Stripping length | Front full strip: 0 - 250mm |
Rear full strip: 0 - 150mm | |
Production rate | 1500-2500 pcs/h |
Data library | 200 programs |
Cutter head | Servo motorized |
Rated power | 800 W |
Display | 7" color touchscreen, English / Chinese [ other languages on request ] |
Cable feeding | Servo motorized belt feeding system, 12 rollers |
Compatible peripherals | Cable prefeeding machine, robot arm, conveyor belt, cable rewinding machine, cable slit device, inkjet printer, hot stamp marker |
Power supply | AC 110 - 220 V ± 10%, 50 / 60 Hz |
Dimensions | L 650 x W 550 x H 1100 mm |
Weight | 105 KG |
CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
