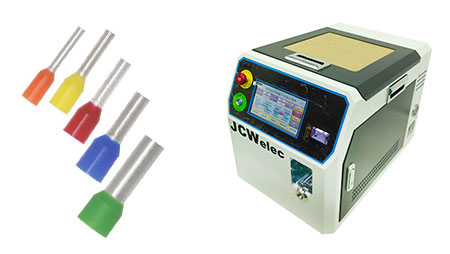

JCW-F16
1 vibrator bowl for all ferrules ranging from 0.3 to 16 sqmm
Stripping length up to 30mm
Crimping length up to 20mm
Servo motor control
User-friendly, robust and compact design
Crimp force monitor is compatible
Top cover sensor is optional
Deutsch solid contact version is customizable
Insulated Wire Ferrule Crimping
Deustch Solid Contact Crimping
| Model | JCW-F16 Servo Model Automatic Wire Ferrule and Wire Crimping Machine |
| Function | Single wire, Multicore cable, Wire end stripping, Conductor twisting, Tubular insulated terminal crimping, Quadrangle crimping, Stripping length, Cutting depth, Data library |
| Conductor cross-section | 0.3 (custom), 0.5, 0.75, 1.0, 1.5, 2.5, 4.0, 6.0, 10, 16 mm² [ adjusting vibrate bowl ] |
| Stripping length | 6-30 mm |
| Crimping profile | Quadrilateral [ imitating square ] [ customizable ] |
| Crimping length | Max 20 mm |
| Cycle time | 3.2 seconds |
| Display | 7" color touchscreen, English / Chinese [ other languages on request ] |
| Customize logo | Yes |
| Air supply | 0.6 - 0.8 MPa ( clean and dry air ) |
| Rated power | 1500 W |
| Operate temperature | 0～35℃ |
| Operating humidity | 30～80 HR |
| Power supply | AC 220V ± 10%, 10A, 50 / 60 Hz |
| Dimensions | L 365 x W 522 x H 430 mm |
| Weight | 65 KG |
| CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
