Automatic 14mm Multi-conductor Cable Cut & Strip Machine JCW-CS15N

Focus on multicore cable, strip both layers, high reliability


Specialist in processing multicore cable

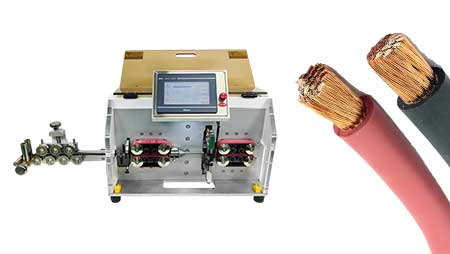

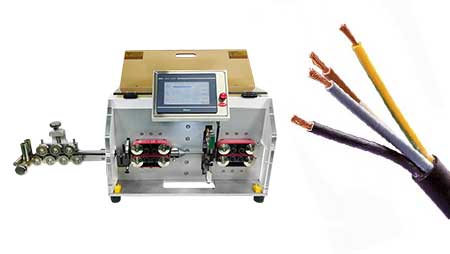

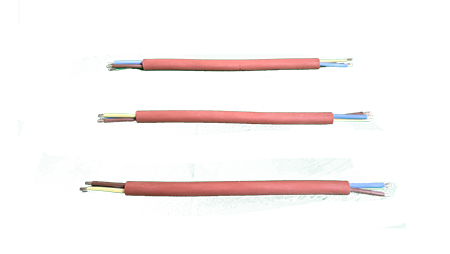

The JCW-CS15N cable cutting and stripping machine is updated base on JCW-CS15, it is capable of processing multicore cable up to 14mm O.D, cutting and stripping both outer jacket and inner cores at one time perfectly. Unique shift cutter head carries 4 pieces of blades, processing outer jacket and inner cores separately allows big diameter cable and ensures high precision.


By fast-changing guide tubes, the JCW-CS15N cable cutting and stripping machine covers a wide cable range. This cut & strip machine also can be used for single wire up to 30 mm².


Easy to use

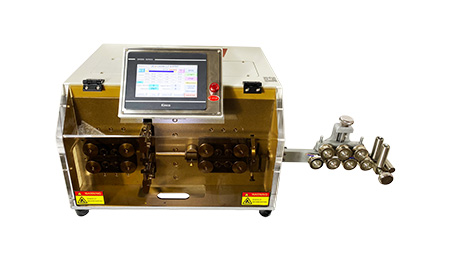

Each of the JCW-CS15N cutting and stripping machine comes with English display, the display language is customizable. A user-friendly interface and 7" color touchscreen make the operation so accurate and simple.

- The control with a touch screen has an intuitive user interface for simple and safe operation.

- The parameters such as wire cutting length, stripping length, wire diameter, speed, etc. can be accurately entered and stored for future recall at any time.

- Data library saves 100 programs, you can name each one by a wish.

- Automatic one-touch calibration function for cutting length.

- Cable run-out sensor gives the machine a stop signal while the cable is used out.

- Quickly change guide tubes and cutter blades.

- Transparent safety cover with sensor

- Ink jet printer

- Cable coiler


Build up your automated product line

Highly automated production lines play a more critical role in modern wire harness processing, greatly reducing labor costs and enhancing competitiveness.

- Wire unwind & pre-feed machine, load range from 15 to 200 KG

- Robot arm controlled by CS15N

- Cable stacker, 1 meter to 6 meters


ModelJCW-CS15N 14MM Automatic Multicore Cable Cutting and Stripping Machine
Function

Single wire, Multicore cable, Wire measuring, Cut into length, Full stripping, Partial stripping, Mid-stripping, Wire lack sensor, Length correction, Ink jet printer

Raw materialPVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Cable size

Max 14 mm O.D. [ Max wire guide 16 mm I.D. ]

Conductor cross-section30 mm²
Cutting length ( L )0.1 - 999999 mm
Cutting length accuracy
0.002 x L
Single wireYES
Multicore cable7 - 8 cores
Outer jacket stripping lengthLeading ( right ) side: 150 mm
Trailing ( left ) side: 80 mm
Inner core stripping length50 mm at dual-ends
Production rate1000 pcs/h by 100mm wire length [ multi-layer stripping ]
Data library100 programs
Feeding unitBelt
Display7" color touchscreen, English / Chinese  [ other languages on request ]
Cable feed directionLeft / Right ( optional )
Compatible peripheralsCable prefeeder & dereeler, robot arm, conveyor belt, ink jet printer, cable coiler
Power supply
AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply0.4 - 0.7 MPa ( clean and dry air )
DimensionsMachine: L 630 x W 550 x H 500 mm
Wire straightener: 350mm
Weight82 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
