Automatic Multi-conductor Cable Processing Center

JCW-CS13C

Floor-standing integrated design

Built-in 1-meter conveyor belt

Equipped with robotic arm stacker

For round multi-core sheathed cables

Max outer diameter up to 10 mm

Cut, strip and stack automatically

Connect with marking printers

Stable for continuous batch production

Inquire Now

Cable Cutting Stripping & Stacking

Automatic Multi-conductor Cable Processing Center

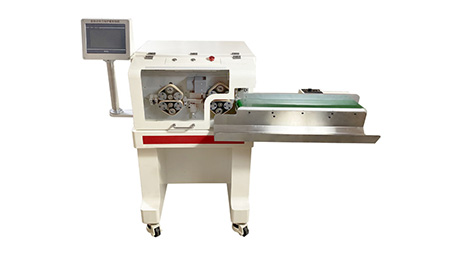

JCW-CS13C is a floor-standing automatic cutting and stripping machine designed for round multi-core sheathed cables up to 10 mm outer diameter. It adopts an integrated solution that combines the main stripping unit, a 1-meter conveyor belt and a robotic arm stacker into one working system.

After the cable is cut and stripped, the conveyor belt transfers the finished pieces forward, while the robotic arm automatically sorts and stacks them in order. This reduces manual handling, improves consistency and supports longer automatic operation in mass production.

The machine is widely used for power cables, lighting wires and other medium-size sheathed wire processing in harness workshops.

It is suitable for production environments that require stable cutting, stripping and automatic material handling.

It supports standard Chinese and English operation interface, and additional languages can be added on request.

Communication interfaces are reserved for connecting heat transfer printers, inkjet marking machines or laser marking machines.

With its integrated conveyor and robotic arm, JCW-CS13C helps customers build a more automated wire processing workflow.

Model	JCW-CS13C Automatic Cable Cut & Strip Machine
Function	Single wire, Multicore cable, Wire measuring, Cut into length, Full stripping, Partial stripping, Outer jacket stripping, Inner insulation stripping, Wire lack sensor, Length correction, Automatic cable collector
Raw material	PVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Cable size	3 - 10 mm O.D.
Cutting length ( L )	150 - 999999 mm
Cutting length accuracy	0.002 x L
Single wire	YES
Multi-core cable	Round
Outer jacket stripping length	Leading ( right ) side: 250 mm
Outer jacket stripping length	Trailing ( left ) side: 70 mm
Inner core stripping length	15 mm at dual-ends
Production rate	1100 pcs/h by 500mm wire length [ multi-layer stripping ]
Data library	100 programs
Feeding unit	Belt
Display	7" color touchscreen, English / Chinese [ other languages on request ]
Compatible peripherals	Cable prefeeder
Rated power	1200 W
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply	0.5 - 0.8 MPa ( clean and dry air )
Dimensions	Whole machine: L 1500 x W 800 x H 1300 mm
Dimensions	Conveyor belt: 700mm
Weight	135 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
