JCW-CS13N O.D 10mm Multicore Cable Cutting Stripping Machine

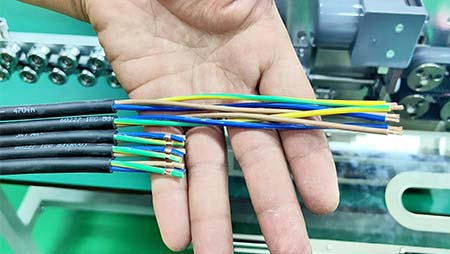

The JCW-CS13N is an automatic cutting and stripping machine designed for round multi-core sheathed cables, supporting cable outer diameter up to 10 mm.

It handles thicker sheath cables compared with smaller models and meets the demands of larger-size wire harness processing.


This machine adopts a 7-inch color touch screen as the operation panel. Different from ordinary models with numbered programs, this version supports custom naming for each saved program.

Operators can mark programs by cable type, specification or production batch, making it much easier to identify and recall target programs quickly during frequent product switching.


It serves a wide range of application scenarios. It is widely used for power cords, lighting cables and other multi-core sheathed wire processing in the wiring harness industry.


The JCW-CS13N reserves communication interfaces to connect with heat transfer printers, inkjet marking machines and laser marking machines for synchronous marking. It can also work with wire prefeed machines and conveyors to form a complete automatic production line.


Standard operation interface includes Chinese and English, and extra language packages can be added according to customer requirements. Stable cutting and stripping performance, well suited for continuous mass production of medium-size sheathed cables.


ModelJCW-CS13N O.D 10mm Multicore Cable Cutting Stripping Machine
Function

Single wire, Multicore cable, Wire measuring, Cut into length, Full stripping, Partial stripping, Mid-stripping, Cable lack sensor, Length correction, Thermal transfer print, Inkjet print

Raw materialPVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Multi-core cable2 - 10 mm O.D.
Single-conductor wireMax 16mm²
Cutting length ( L )0.1 - 999999 mm
Cutting length accuracy
0.002 x L
Single wireYES
Multi-core cableRound
Outer jacket stripping lengthLeading ( right ) side: 150 mm
Trailing ( left ) side: 60 mm
Inner core stripping length30 mm at dual ends
Production rate1500 pcs/h by 100mm wire length [ multi-layer stripping ]
Data library100 programs
Feeding unitBelt
Display7" color touchscreen, English / Chinese  [ other languages on request ]
Compatible peripheralsCable dereeler, robot arm, conveyor belt, inkjet printer, thermal transfer printer
Power supply
AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply0.4 - 0.7 MPa ( clean and dry air )
DimensionsL 570 x W 560 x H 410 mm
Weight56 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
