Mini size, portable and ergonomic design, comfortable hand feel
Short cycle time, each cycle takes 0.5s

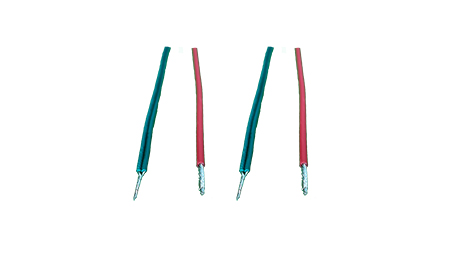

Tight and neat twisting. Avoid conductor missing
Take the place of manual work
Self-adaptive 12mm nozzle for different wires
JCW-323
Mini size, portable and ergonomic design, comfortable hand feel
Short cycle time, each cycle takes 0.5s
Tight and neat twisting. Avoid conductor missing
Take the place of manual work
Self-adaptive 12mm nozzle for different wires
Model | JCW-323 Versatile Handheld Wire Twisting Tool |
Function | Stranded wire, cable tie, button, foot pedal |
Capacity | Total conductor cross-sections 0.5 - 4 mm² max |
Twisting length | 5 - 30 mm [ Ideal range 10 - 15 mm ] |
Cycle time | 0.5 second |
Power supply | AC 110 - 220 V ± 10%, 50 / 60 Hz |
Dimensions | D 51 x L 248 mm. Holding position diameter 30 mm |
Weight | 0.535 KG |
CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
