JCW-CS15NT Round Multicore Cable Cutting, Stripping & Twisting Machine

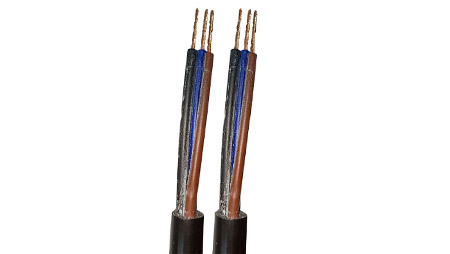

JCW-CS15NT is a floor-standing all-in-one twisting variant of the CS15N series for round multi-core sheathed cables, suitable for cables with up to 7 inner conductors.


This machine completes cutting, outer jacket stripping, inner core stripping and conductor twisting in one automatic cycle.

It is integrated with a robotic arm and dedicated collecting stacker. Once processing is finished, the robotic arm transfers finished cables and drops them neatly into the collecting chute, eliminating manual picking and arranging, boosting continuous unmanned batch production efficiency.


It keeps the 7-inch color touch screen control system. All processing recipes can be custom named, helping operators rapidly locate and switch programs for different cable types.

Chinese and English interfaces come as standard, and additional language packs can be configured for overseas workshops.


Reserved interfaces support thermal transfer, inkjet and laser marking devices.

JCW-CS15NT is widely applied for power cords and control multi-core cables that demand inner stripping and twisting, ideal for high-volume harness manufacturing.

Model

JCW-CS15NT Round Multicore Cable Cutting Stripping Twisting Machine

Function

Single wire, Multicore cable, Wire measuring, Cut into length, Full stripping, Partial stripping, Conductor twisting, Mid-stripping, Wire lack sensor, Length correction

Raw material

PVC, Teflon, Silicone, Low halogen, Fiberglass, etc

Multicore cable

Max 16 mm O.D.

Single-conductor wire

30 mm²

Cutting length ( L )

0.1 - 999999 mm

Cutting length accuracy

0.002 x L

Single wire

YES

Multicore cable

7 cores

Outer jacket stripping length

Leading side: 30-150 mm

Trailing side: 30-100 mm

Inner core stripping length

3-50 mm at dual ends

Twisting length

3-15 mm

Production rate

1000 pcs/h by 100mm wire length [ no twisting ]

200 pcs/h by 100 wire length [ twisting ]

Data library

100 programs

Feeding unit

Belt

Display

7" color touchscreen, English / Chinese  [ other languages on request ]

Cable feed direction

Left / Right ( optional )

Compatible peripherals

Cable prefeeder & dereeler, robot arm, conveyor belt, inkjet printer, cable coiler, thermal transfer stamp marker

Power supply

AC 110 - 220 V ± 10%, 50 / 60 Hz

Air supply

0.4 - 0.7 MPa ( clean and dry air )

Dimensions

Machine: L 1100 x W 600 x H 1450 mm

Weight

122 KG

CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
