70mm² Cable Cut & Strip Machine

JCW-CS18A

Desktop compact design

Max processing cross section: 70mm²

7-inch color touch screen

Abundant extended functions

Supports printer connection

Belt feeding for precise length control

Inquire Now

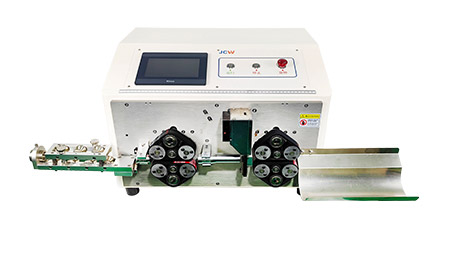

70SQ Cable Cut Strip

Versatile 70mm² Cable Cut & Strip Machine

JCW-CS18A is a desktop cable cut-and-strip unit built to handle cables up to 70mm². It features belt feeding that maintains consistent length accuracy while protecting cable jacket from damage during feeding.

Equipped with a generous 7-inch touch display, this model unlocks a wider set of advanced features compared to the basic variant. It supports printer connectivity for outputting production records and labels, making it ideal for workshops that require production traceability.

Its robust cutting mechanism delivers stable cutting power for daily batch jobs. It can be paired with marking machine, pay-off machine and take-up conveyor to build a continuous automated cable processing line.

Multiple cable recipes can be stored and managed on the system for fast switching between different cable specifications. Chinese and English interface options are available.

Model	JCW-CS18A 70mm² Cable Cut & Strip Machine
Function	Cable measuring, Cut length, Full stripping, Partial stripping, Mid-stripping, Cut depth, Wire lack sensor, Length correction
Raw material	PVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Guide I.D	4/6/8/10/12/14/16/18/20/23 mm Optional
Conductor cross-sections	6 - 70 mm², 20 mm O.D
Cutting length ( L )	0.1 - 999999 mm
Cutting length accuracy	0.002 x L
Stripping length	100 mm
Production rate	700-1000 pcs/h
Data library	100 programs
Multicore cable	Outer jacket stripping only
Display	7" color touchscreen, English / Chinese [ other languages on request ]
Cable feeding	12 rollers driven belt system
Blade type	V-blade, radius blade
Compatible peripherals	Cable prefeeding machine, robot arm, conveyor belt, printer
Rated power	2200 W
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply	0.4 - 0.7 MPa ( clean and dry air )
Dimensions	L 650 x W 580 x H 460 mm
Weight	80 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
