JCW-WP17
One-touch lifting and lowering for easy loading and unloading of the spool
Easily move to any location in the workshop
Dual motors, active rotation eliminates wire tension
High-speed and stable wire feeding, compatible with any wire processing machine

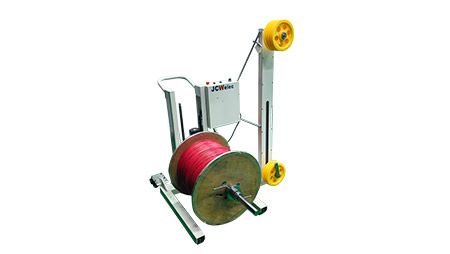

100kg Smart Wire Drum Pay-off
| Model | JCW-WP17 Lifting Type Wire Drum Unwinding Machine |
| Wire diameter | 1 - 10 mm |
| Barrel diameter | 400 - 800 mm |
| Barrel outer width | Max 500 mm |
| Barrel hole | 35 - 85 mm |
| Barrel weight | 120 KG |
| Spin motor | Servo motor |
| Lift control | Step motor |
| Rated power | 1400 W |
| Feeding speed | 60 m / min |
| Power supply | AC 220V, 50/60 Hz |
| Dimensions | L 1100 x W 1120 x H 1500 mm |
| Weight | 100 KG |
| CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
