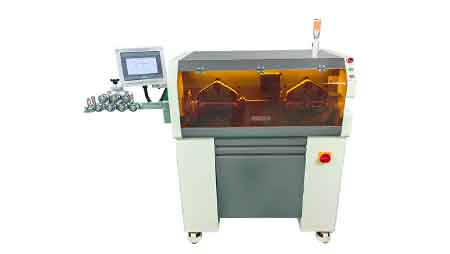

150mm² Cable Cutting Stripping Machine

JCW-CS19B

Servo motorized cutter head

High-quality belt, high-precision cable feeding

Good quality high-speed steel made blades

Fully covered safety guard with interlock sensor

Compatible with printer, winding system, etc

Barcode scanner is optional

Inquire Now

HV Cable Cut Strip Machine

150mm² Cable Cutting Stripping Machine

JCW-CS19B is a versatile cut-and-strip unit engineered for heavy-duty battery cables, accommodating cross sections up to 150mm².

It handles heavy power cables reliably, delivering tidy cuts and consistent stripping quality for welding harness and energy storage assemblies.

This platform is highly modular to match diverse automation needs. Users may integrate a robotic arm or barcode scanner as add-ons, to realize automated handling and batch traceability.

It can link seamlessly with a pay-off feeder and output conveyor to form an end-to-end processing line. Thanks to its mobile chassis, the machine can be relocated freely across the workshop to adapt to shifting production arrangements.

Operation is managed via an intuitive 7-inch touch panel. Parameter sets for different cable types can be saved individually and retrieved instantly.

The control system comes with Chinese and English interfaces by default, with further language options available upon request.

The machine reserves signal interfaces to coordinate with external marking hardware.

Model	JCW-CS19B Welding Cable Cutting Stripping Machine
Function	Single wire, Multicore cable, Wire measuring, Cut into length, Full stripping, Partial stripping, Cut depth, Cut speed, Feed speed, Run-out sensor, Length correction, Safety door sensor
Raw material	PVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Conductor cross-sections	10 - 150 mm²
Cable diameter	8 - 26 mm
Guide tube	8 sets
Cutting length ( L )	1 - 99999.9 mm
Cutting length accuracy	0.002 x L
Stripping length	Front ( right ) side: 1 - 200 mm
Stripping length	Rear ( left ) side: 1 - 200 mm
Feeding system	20 rollers, belt-driven
Blade material	High-speed steel
Blade type	V-blade, radius blade
Production rate	700-1000 pcs/h [ depends on cutting length ]
Data library	100 programs
OEM	Yes
Display	7" color touchscreen, English / Chinese [ other languages on request ]
Compatible peripherals	Printer, coiler, wire pre-feeder, robot arm, conveyor belt
Rated power	1800 W
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Dimensions	L 980 x W 580 x H 1200 mm
Weight	280 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
