Cable and Wire Rope Measure Cut and Coil Machine

JCW-WB05B

Fully customizable cable packing machine

Measuring, cutting and winding cable

Various cable cover plates on option

Can be customized for different coil requirements

Coil I.D. range from 50-300mm

Precise positioning, neat winding

Apply to both cable coil and cable spool

Inquire Now

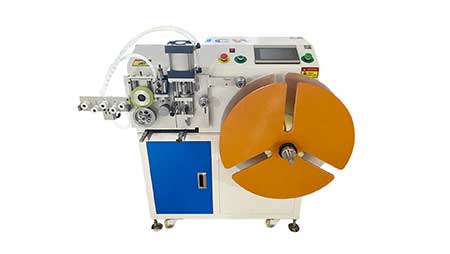

50KG Versiion | 60MM Plate, Cable Roll

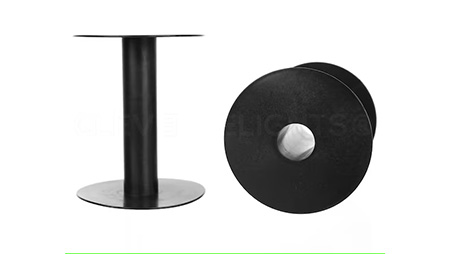

15KG Version | Long Plastic Cable Reel

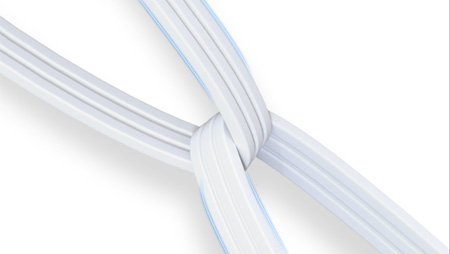

3KG Version | Flat Optic Fiber Cable Reel

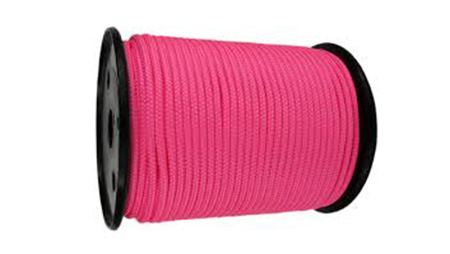

Braided Polypropylene Rope Coiling

Fully customizable measuring to winding machine

JCW-WB05 series machines are highly customizable winding machines that can divide large coils of cable, steel wire, and pipes into small coils, or wind materials that have been cut into desired lengths into coils. The JCW-WB05 series machines can wind materials into hollow coils, or use a spool and wind the material onto the spool.

The complete functions of this machine include metering, cutting, winding, and ranking. The above 4 functions can be combined in different ways to meet customer needs in a variety of materials and application scenarios.

Model	JCW-WB05B Heavy-duty Automatic Cable Coiling Machine
Function	Measure cable, feeding length, wind cable by order, automatic cut cable. Feeding speed, winding speed, winding cycles.
Wire diameter	Max 10 mm [ Customizable ]
Coil inner diameter	50 - 300 mm [ Customizable ]
Cable plate diameter	220 - 350 mm [ Customizable ]
Coil width	Max 200mm [ Customizable to 300 / 400mm ]
Cable spool	On request only
Spool dimensions	Customizable
Winding speed	1 - 10 cycles / s
Cable weight	3 - 50 KG [ Customizable ]
Display	7" color touchscreen, English / Chinese [ other languages on request ]
Compatible peripherals	Cable prefeeding machine
Rated power	500 W
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply	0.4 - 0.7 MPa ( clean and dry air )
Dimensions	L 1000 x W 850 x H 1030 mm
Weight	150 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
