150sq Heavy-duty Cable Measuring and Cutting Machine

JCW-C150

Process cable, copper braid, etc

Servo motor controlled cutter head

Cable range up to 150sqmm

Customizable to be full servo motors

Minimum cutting length 30MM

PVC cable, armored cable, steel wire rope, etc

Inquire Now

Cable Cutting Machine

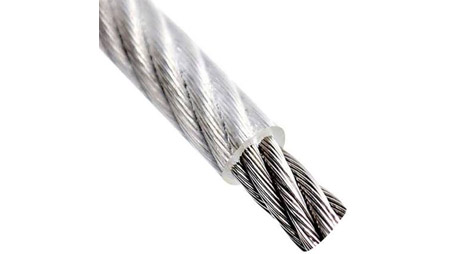

Stainless Wire Cutting

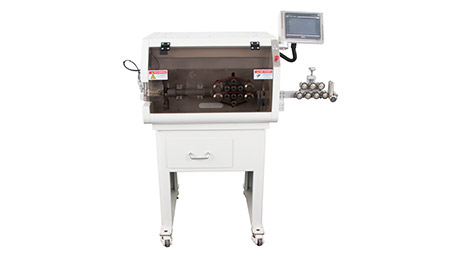

JCW-C150 heavy-duty multi-functional cutting machine is one of our wire processing equipment, specially developed as a reliable wire processing machine for cutting thick cables and steel wire ropes in heavy-load production scenarios.

Built with reinforced heavy frame and high-hardness cutting blades, this cable processing equipment delivers powerful and consistent shearing force, ensuring flat and deformation-free cutting ends even when handling tough, rigid workpieces. It integrates automatic feeding, length measuring and fixed-length cutting functions, greatly improving efficiency for batch production.

Equipped with a user-friendly touchscreen control panel, operators can easily adjust cutting length, feeding speed and production quantity according to different workpiece requirements.

Widely applied in automotive wire harness, elevator cable, lifting rigging and heavy cable assembly industries, the machine maintains stable performance during long continuous operation, reduces vibration and extends blade service life.

As a professional manufacturer, we can customize feeding guides and blade assemblies to meet your special processing demands for various heavy materials.

Model	JCW-C150 Cable Cutting Machine
Function	Cable measure, cut into length, cable & copper braid, speed & length adjustment
Raw material	PVC, Teflon, Low halogen, Fiberglass, etc
Cutting diameter	Max 30mm
Conductor cross-section	Max 150mm²
Cutting length ( L )	30 - 999999 mm
Front end stripping	Max 800mm
OEM	Yes
Rated power	1600 W
Productivity	1000 pcs / h [ Varies with cable diameter ]
Compatible accessories	Cable prefeeder, robot arm, cable stacker
Power supply	AC 110 - 220V + 10 %, 50/60 Hz
Dimensions	L 900 x W 700 x H 1250 mm
Weight	110 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
