JCW-S10A Semi-auto Pneumatic Wire Stripping Machine

Processing 0.5-10mm² wire and cable with a single set of V-blade


JCW-S10A is a new pneumatic peeling machine optimized on the basis of JCW-S35. All that is needed to operate the machine is a compressed air connection. This wire stripper is an ideal model for multicore cable with inner wires at different diameters.

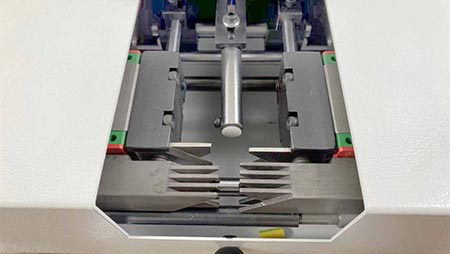

The smart design allows for processing wires with a single set of V-blade, change the blade is unnecessary to strip wires up to 10mm².


The machine can perform both full and partial stripping by simple adjustment.


The JCW-S10A pneumatic wire stripper is activated by the trigger sensor, the wire processing is started once the wire end touches the trigger sensor.



ModelJCW-S10A Pneumatic Wire Stripping Machine [ 0.5- 10mm² ]
FunctionFull stripping, partial stripping, no blade change needs
Raw materialPVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Conductor cross-sections0.5 - 10 mm²
Stripping length2 -  50 mm
Product rate1500 - 2000 pcs/h
OEMYes
Air supply0.4 - 0.75 MPa ( clean and dry air )
DimensionsL 400 x W 370 x H 200 mm
Weight24 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
