20kN Pneumatic Terminal Crimping Machine

JCW-320F

Vertical crimping

Dual-action cylinder, adjustable crimping force

23KN crimping force

4 sets of the crimp die sets

Dozens of die sets for selection

Fast crimp die sets changeover

35 mm² insulated end sleeve

16 mm² copper tube lug

Inquire Now

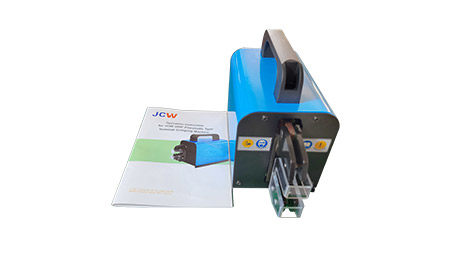

Portable Terminal Crimping Machine

JCW-320F Pneumatic Terminal Crimping Machine

23 KN crimping force, fast change crimp die sets

The JCW-320F pneumatic terminal crimping machine is the heavy-duty pneumatic model of the JCW-320 series, delivering maximum 20kN crimp force for heavy-load terminal crimping work.

Powered by compressed air, this machine provides strong, consistent force output. It keeps the flexible quick-swap die structure of the whole series.

Operators can change crimp dies rapidly to match different terminal types and large-size wire specifications.

Its robust frame supports long continuous operation. This machine balances high crimping capacity and great flexibility, well suited for small-batch, mixed-variety harness orders that require frequent specification switching.

The JCW-320F is widely used for electrical assembly, power distribution and energy storage harness manufacturing.

Model	JCW-320F Pneumatic Terminal Crimping Machine
Function	Open barrel, closed barrel, loose terminal, fast change die set.
Cable range	Insulated end sleeve: up to 35 mm² Non-insulated tubular lug: up to 16 mm² Open barrel terminal: up to 6 mm² Solid contact: up to 4 mm²
Crimping force	23 KN
Crimp dies sets	4 sets
OEM	Yes
Activation	Foot pedal
Air supply	0.4 - 0.8 MPa ( clean and dry air )
Dimensions	L 260 x W 110 x H 170 mm
Weight	6 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
