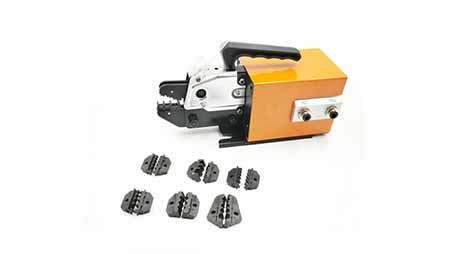

13.5kN Portable Pneumatic Terminal Crimper

JCW-320

Pneumatic crimping machine

13.5KN crimping force

4 sets of the crimp die sets

Dozens of die sets for selection

Fast crimp die sets changeover

25 mm² bootlace ferrule

10 mm² non-insulated tubular terminal

Inquire Now

Pneumatic Terminal Crimper

JCW-320 Pneumatic Bench Top Terminal Crimping Machine

13.5 KN crimping force, fast change crimp die sets

JCW-320 is the base entry model of the JCW-320 terminal crimping machine series and remains our most popular configuration for general harness workshops.

It features an economical price point with proven reliable crimp performance, making it the preferred choice for factories with diversified low-volume orders.

This unit accepts interchangeable crimp dies to process a wide spectrum of common terminals.

It excels in small-batch and mixed-variety production environments, where operators frequently switch between different wiring specifications.

Besides routine production crimping, this base model is also commonly deployed at QC stations.

When inspectors find non-compliant crimped terminals, technicians can use the JCW-320 to rework and re-crimp those defective harness samples to save costs.

Simple to operate and easy to set up during die swap, this base version balances performance and budget perfectly.

It can be configured as pneumatic or electric type according to on-site air supply conditions, and fits electrical, power, battery and new energy harness workshops perfectly.

The JCW-320 series crimping machines are activated by a foot pedal, the operator can place the terminal and wire with two hands, which has achieved a safer operation, reducing crimping cost and improving crimping quality.

Model	JCW-320 Portable Pneumatic Terminal Crimping Machine
Function	Open barrel, closed barrel, loose terminal, fast change die sets.
Cable range	Bootlace ferrule: 25 mm²
Cable range	Non-insulated tubular terminal: 10 mm²
Crimping force	13.5 KN
Crimp dies sets	4 sets
OEM	Yes
Activation	Foot pedal
Air supply	0.4 - 0.7 MPa ( clean and dry air )
Dimensions	L 260 x W 120 x H 140 mm
Weight	5 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
