Fully Programmable Smart Wire End Cutting & Stripping Machine

Fully Programmable Smart Wire End Cutting & Stripping Machine

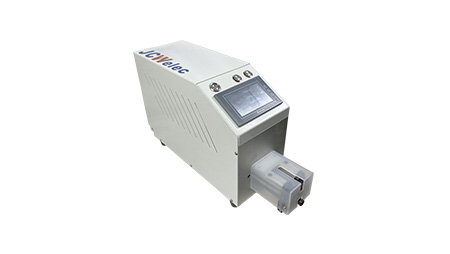

JCW-S05F Automatic Wire Stripping Machine

Fully programmable

The JCW-S05F offers the user-friendly operation, all the parameters are programmable via a 4.3" color touchscreen. The data library saves programs automatically for future use. Mechanic adjustment is not needed. The machine starts working once the wire end touches the trigger sensor, V-blade cuts the insulation precisely.

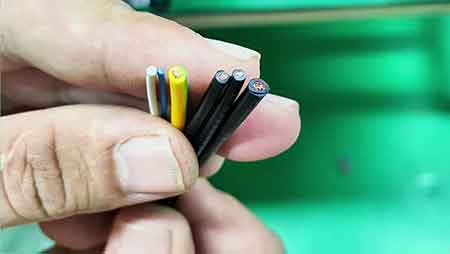

Via program setting, the S05F wire stripping machine can cut the wires into the same length.


JCW-S05F Automatic Wire Stripping Machine


Full stripping, partial stripping, cut diameter, double- / multi-layer strip, strip position, pull-off length

Raw material

PVC, Teflon, Silicone, Low halogen, Fiberglass, etc

Conductor cross-sections

0.04 - 16 mm² [ AWG 30 - 4 ]

Stripping length

1 -  40 mm

Strip increment

0.05 mm

Production rate

1800 - 2000 pcs/h



Power supplyAC 110 - 220V, 50 / 60 Hz


L 500 x W 162 x H 300 mm


15 KG


Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
