Powerful wire stripping machine suitable for high-voltage cables, etc.
Servo motor drive, low noise, high precision
Combine with feeding machines, wire stacker, etc.
Barcode scanner is optional
JCW-CS21
Powerful wire stripping machine suitable for high-voltage cables, etc.
Servo motor drive, low noise, high precision
Combine with feeding machines, wire stacker, etc.
Barcode scanner is optional
300mm² Cable Cutting Machine
400SQ Heavy Single Core Cable Cutting Stripping Machine

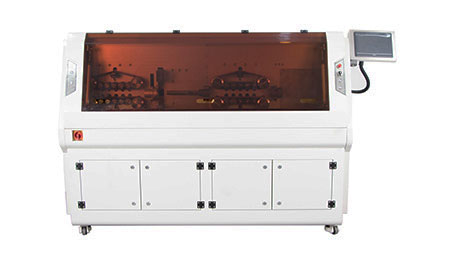

JCW-CS21 is an ultra heavy-duty cutting and stripping machine built for large cross-section single core cables, supporting cable sizes up to 400sqmm. It delivers uniform cuts on thick insulation layers, avoiding scratches and nicks on copper conductors to guarantee reliable stripping quality.
Reinforced rigid frame and high-torque servo drive provide stable power to handle thick industrial power cables widely used in energy storage, power transmission and heavy engineering harnesses.
Optional host PC can be equipped to connect with factory MES systems, realizing production data recording, product traceability and centralized workshop management for intelligent manufacturing.
It uses a 7-inch color touch screen control panel. Each processing recipe can be named freely for quick recall when switching different cable specifications. Chinese and English interfaces are standard, more language options can be configured for overseas factories.
Reserved signal interfaces support inline marking printers. JCW-CS21 can also pair with heavy-duty pay-off racks and winding machines to form a complete automatic processing line for large single core cables.
| Model | JCW-CS21 300SQ Heavy Cable Cutting and Stripping Machine |
| Function | Single wire, Multicore cable, Wire measuring, Cut into length, Full stripping, Partial stripping, Cut depth, Cut speed, Feed speed, Run-out sensor, Length correction, Safety door sensor |
| Raw material | PVC, Teflon, Silicone, Low halogen, Fiberglass, etc |
| Conductor cross-sections | 30 - 400 mm² |
| Cable diameter | 15 - 50 mm |
| Cutting length ( L ) | 1 - 99999.9 mm |
| Cutting length accuracy | 0.002 x L |
| Stripping length | Front ( right ) side: 1 - 1000 mm |
| Rear ( left ) side: 1 - 300 mm | |
| Feeding system | Servo motor driven 32 rollers, belt-driven |
| Production rate | 500 - 1000 pcs/h [ depends on cutting length ] |
| Data library | 100 programs |
| OEM | Yes |
| Display | 7" color touchscreen, English / Chinese [ other languages on request ] |
| Compatible peripherals | Wire pre-feeder, conveyor belt stacker, coiler |
| Power supply | AC 110 - 220 V ± 10%, 50 / 60 Hz |
| Dimensions | L 1680 x W 750 x H 1420 mm |
| Weight | 280 KG |
| CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
