240mm² Servo Motorized HV Cable Cutting Stripping Machine

JCW-CS20A

Servo motorized cutter head, neat cutting

Cut and strip max 33 mm O.D. and 10 -240 mm² battery cables

High-quality belt feed system, zero damage to the cable

Powerful clamp force, precise feeding length

7" color touch screen, multi-language interface

Transparent and robust safety cover, safety sensor

Automatic cutting length calibration ensures precision

Cable run-out sensor gives machine stop signal

Inquire Now

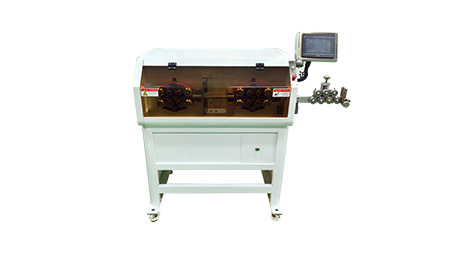

240mmsq Cable Cutter Stripper

240mm² Servo Motorized HV Cable Cutting Stripping Machine

JCW-CS20A is a servo-powered high voltage cable cutting and stripping machine, built to handle single core cables up to 240mm². It delivers stable and consistent stripping performance for thick high-voltage cables widely used in new energy , battery, soldering machine and power harness applications.

This machine features excellent expandability to cooperate with peripheral units.

It can be paired with heavy-duty pay-off machine, winder or stacker for complete automated workflow. For long-length cable orders, the matching winder is the preferred option.

It winds finished cables into compact rolls automatically, which greatly reduces space occupation on the workshop floor and improves overall production efficiency for continuous long cable runs.

It adopts 7-inch color touch screen control. All processing recipes can be custom named for fast switching between different cable specifications. Standard interface supports Chinese and English, and additional language packs are available for overseas factories.

Reserved signal ports support inline marking printers for traceability marking.

Model	JCW-CS20A Servo Motorized HV Cable Cutting Stripping Machine
Function	Single wire, Multicore cable, Wire measuring, Cut into length, Full stripping, Partial stripping, Cut depth, Cut speed, Feed speed, Run-out sensor, Length correction, Safety door sensor
Raw material	PVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Conductor cross-sections	10 - 240 mm²
Cable diameter	Max 30 mm
Cutting length ( L )	1 - 99999.9 mm
Cutting length accuracy	0.002 x L
Stripping length	Front ( right ) side: 1 - 800 mm
Stripping length	Rear ( left ) side: 1 - 400 mm
Feeding system	32 rollers, belt-driven
Production rate	1800 pcs/h [ depends on cutting length ]
Data library	100 programs
OEM	Yes
Rated power	5200 W
Display	7" color touchscreen, English / Chinese [ other languages on request ]
Compatible peripherals	Cable splitter, wire pre feeder, robotic arm, conveyor belt
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Dimensions	L 1150 x W 750 x H 1220 mm
Weight	240 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
