150 mm² Electric Car Charging Cable Crimping Machine

JCW-30TS

Servo motorized heavy-duty crimping press

Apply to high voltage cable, power cable

Side-open applicator for 90-degree bend copper lug

Fully enclosed applicator for straight barrel copper cable lug

Set desired crimping height via HMI

High precision crimping, Safe operation

Barcode scanner is optional

Inquire Now

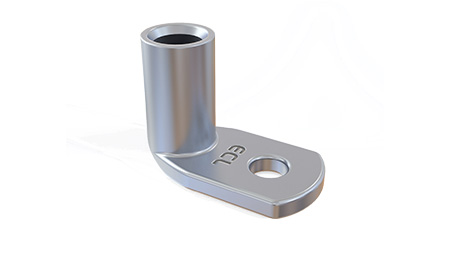

90 Degree Angled Copper Cable Lug Hexagonal Crimp

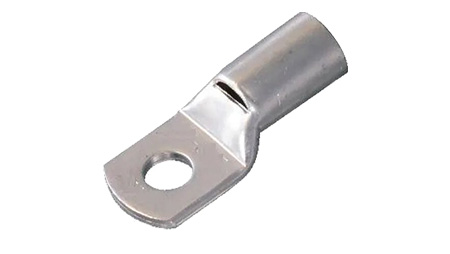

Straight Barrel Lug Hexagonal Crimping

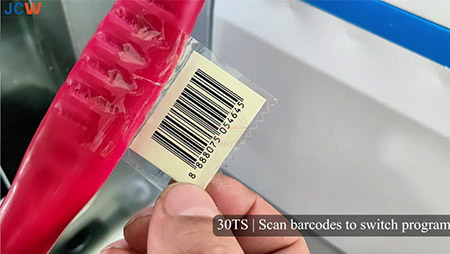

Barcode Scanner

B-type Crimping

JCW-30TS 150 mm² Electric Car Charging Cable Crimping Machine

The JCW-30TS heavy-duty 30-ton servo crimping press is engineered for high-current cable assembly in energy storage, power and new energy battery sectors. It is optimized for crimping large cross-section tubular copper lugs.

Servo technology provides accurate and stable control over crimp force and depth, delivering uniform crimp density and low contact resistance. It accepts heavy tooling and works with heavy-duty hexagonal crimp dies and four-sided crimp dies to meet different lug crimp specifications.

Safety guard and emergency stop button are equipped as standard to safeguard operators and satisfy global machine safety standards. Its strengthened rigid frame keeps deformation minimal under full load and retains stable precision through long continuous heavy crimp cycles. This machine is widely used for battery pack cables, power distribution harness and copper lug fabrication.

Model	JCW-30TS Electric Car Charging Cable Crimping Machine
Function	Servo motor control, Uninsulated tubular terminal, Hexagonal crimping, Crimp height adjustment on-screen, Data library, Freestanding model, Easy to move
Cable range	16 - 150 mm²
Crimping force	300 KN
Crimping length	12 mm [ 16 / 20mm on request ]
Rated power	4000 W
Program saving	12
Press stroke	40mm
Locate stroke	50mm
Activation	Foot pedal
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Dimensions	L 800 x W 650 x H 1300 mm
Weight	350 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
