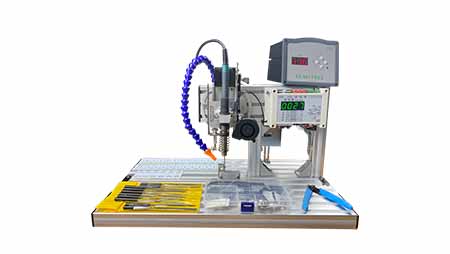

Versatile Economic Semi-auto Soldering Machine

JCW-TS205H

Low-budget semi-auto tin soldering machine

Highly custom tin soldering machine

User-friendly, highly efficient, low investment

Perfect tin soldering solution for various products and raw materials

LED / Avion / PCB / DB9 solder kits come along with the machine

Inquire Now

DC Connector Tin Soldering

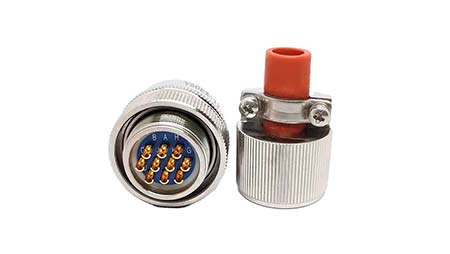

Aviation Plug Soldering

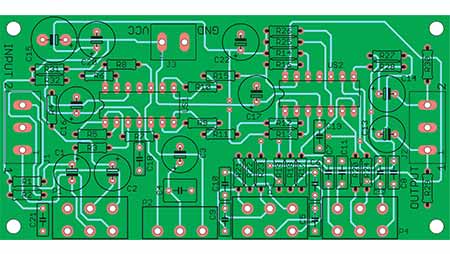

PCB Tin Soldering

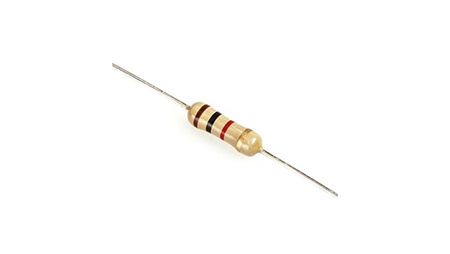

Electrical Resistor Tin Soldering

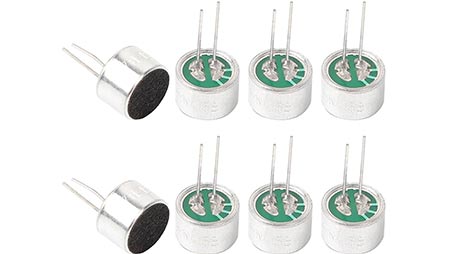

ECM Electret Microphone Tiin Soldering

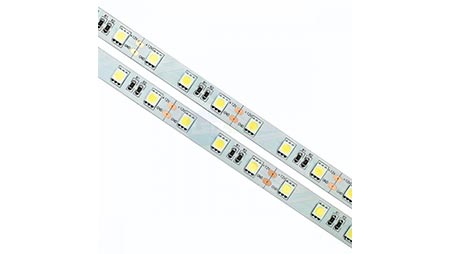

LED Strip Tin Soldering

Efficient, versatile, low-cost, user-friendly tin soldering machine

The JCW-TS205H provides multiple soldering station types and welding methods. The soldering range covers switches, resistors, terminals, connectors, LED lights, diodes, triodes, aluminum light panels, DB9-25 connectors, DC connectors, audio connectors, power plug, solid contact, waterproof headers, USB, microphones, iron sheets, springs, coils, speakers, motors, potentiometers, sensors, circuit boards and wiring harnesses.

Model	JCW-TS205H Tin Soldering Machine
Solder tip	Selectable, customizable
Tin diameter	0.5 - 2.0 mm
Heating range	50 - 600 ℃
Solder direction	6, adjustable
Tin feeding length	0 - 50 mm
Solder stroke	50 mm
Soldering time	0 - 60 seconds
Start-up	Foot pedal
Solder iron	Plastic handle for regular material Metal handle for heavy-duty material
Solder tip	Selectable
Work temperature	0 - 40 ℃
Work humidity	0 - 70%
Rated power	180 W
Power supply	AC 110 - 220 V, 50Hz.
Output	24V, 2A
Weight	11 KG
Dimensions	L 510 x W 300 x H 400 mm
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
