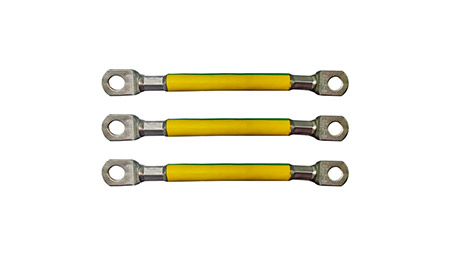

Hexagonal crimping

Hexagonal crimping

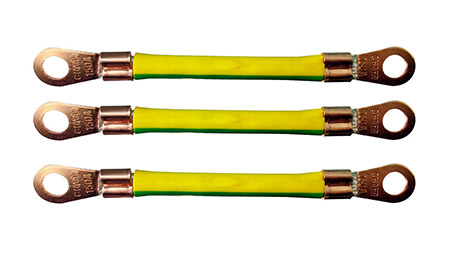

Loose Lug F-crimp

Loose Lug F-crimp

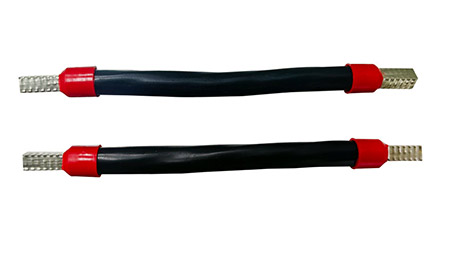

Square crimping

Square crimping

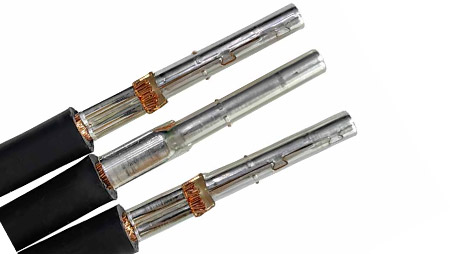

Heavy-duty Reeled Terminal B-crimp

Heavy-duty Reeled Terminal B-crimp

6T/8T/12T 30mm Stroke Servo Motorized Terminal Crimping Machine

The JCW-8TS servo motorized terminal crimp press is engineered for high-end wire harness production, with three tonnage selections: 6T,8T and 12T and fixed 30mm stroke.

It supports adjustable crimp height via HMI panel. Operators can save multiple product recipes onboard to skip repeated parameter calibration during frequent product changeover.


Flexible die compatibility is one core advantage. The machine accepts a wide range of tooling including hexagonal crimp dies, four-sided crimp dies and carrier terminal dies, covering different termination styles for power cables and connectors.


Built with a robust rigid frame, the machine handles heavy-duty crimping tasks steadily. It fits energy storage cables, automotive power harness and large copper lug processing, suitable for manufacturers with mixed terminal types and frequent model switching.


Model

JCW-8TS 30mm Stroke Servo Motorized Terminal Crimping Machine

FunctionOTP crimping applicators, crimp height/speed, holding time, foot pedal
Crimp force80 KN
Crimp profileHexagonal, Indent, Square, F-crimp, W-crimp
Rated power2300 W
Safety guardOptional
Data libraryYes
Stroke

30 mm

Cycle time1.8 S
Crimp height accuracy

± 0.03 mm

ActivationFoot pedal
HMI4.3" colorful touch screen
LanguageEnglish / Chinese ( other languages on request )
Power supply
AC  220 V ± 10%, 50 / 60 Hz
DimensionsL 420 x W 360 x H 800 mm
Weight150 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
