20KN Pull Force Tester

20KN Pull Force Tester

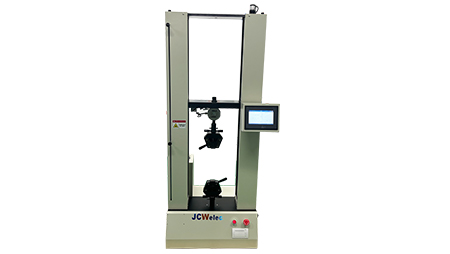

JCW-Q2000 is a gantry type universal push / pull force testing device, designed for tensile, compression, bending and shear strength tests for wire harness terminals, plastic parts, rubber, metal samples and other industrial materials.

We provide multiple force capacity options for selection: 500kgf, 1000kgf, 2000kgf, 3000kgf and 5000kgf. Two standard stroke sizes are available: 500mm and 1000mm. Customers can choose the suitable stroke according to their actual test samples and shipping budget, to balance testing requirement and transportation cost.

This tester features high precision, excellent resolution and stable running performance. Users can freely set upper and lower limit deviation values. It supports automatic sound alarm and level signal output once out of tolerance. Multiple force units are switchable: N, Kgf, Lbf, gf, KN and tf. It comes with peak hold and automatic peak release functions.

Standard serial port output at baud rate 9600, it supports printing of test records. Built-in overload protection, travel limit protection, emergency stop and leakage protection ensure safe operation. Optional PC connection function enables operators to read, print, delete and analyze stored test data for quality traceability.

It is widely used in automotive wiring harness, electronics, new energy, hardware and plastic industries for material mechanical performance inspection.


Model

JCW-Q2000 2tons Versatile Pull Force Testing Device

Measuring range

20 KN ( 2000 KG.F ) [ 500 /1000 / 3000 / 5000 KG.F optional ]

Force units

N, Kgf, Lbf, gf, KN and tf

Distance units

mm, cm, and inch

Displacement accuracy

≤±0.05mm

Mining frequency

50 Hz

Force accuracy

≤±0.5% (5%-100% range)

Stroke

Default: 1000 mm [ Without fixture. Varies with fixture stroke]

Optional: 500 mm

Width range

350 mm

Speed  range

1-400 mm/min

Speed accuracy

1%

Display

4.3" color touchscreen, English / Chinese  [ other languages on request ]

Power supply

AC 110 - 220 V ± 10%, 50 / 60 Hz

Dimensions

L 620 x W 470 x H 1650 mm

Weight

180 KG

CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
