JCW-CS07B Ultra-short 50mm² Heavy Cable Cutting & Stripping Machine

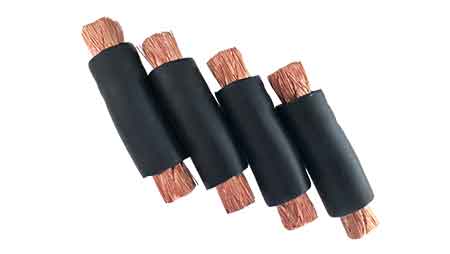

Unique design, battery jumper cable, ultra-short processing

Specialist in processing battery cable

The JCW-CS07B is designed for cutting and stripping heavy-duty cable up to 50mm², it perfectly suits ultra-short cutting and stripping. Servo motorized belt feeding system guarantees the feeding precision, keeps stable clamping during the whole processing, and avoids causing any damage to the outer jacket.

The JCW-CS07B cable cutting and stripping machine uses 7 axis motion control card to control the rollers precisely, the roller gap and pressure are all adjustable via a 7" color touch screen. Upper and lower rollers move simultaneously, no matter cable is big or small, the center points of the cable are always parallel with the guide tube and cutter blade.

Easy to use

The standard model of this cutting and the stripping machine comes with an English display, the display language is customizable. A user-friendly interface and color touchscreen make the operation so accurate and simple.

- The control with touch screen has an intuitive user interface for simple and safe operation.

- The parameters such as wire cutting length, stripping length, wire diameter, speed, etc. can be accurately entered and stored for future recall at any time.

- Data library saves 100 programs, you can name each one by a wish.

- This cutting and stripping machine features an automatic one-touch calibration function for cutting length.

- Quickly change guide tubes and cutter blades.

- Transparent safety cover with sensor


- Wire unwind & pre-feed machine, max 1500 KG

ModelJCW-CS07B Ultra-short 50mm² Heavy Cable Cutting & Stripping Machine

Servo-driven, belt transfer, wire measuring, cut into ultra-short length, single-end strip, dual-end strip, automatic length correction.

Raw materialPVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Conductor cross-sections10-50mm²
Cutting length ( L )50 - 400 mm
Cutting length accuracy
0.002 x L
Length with JacketMin 25mm(L=50mm, strip 12.5mm at both sides)
Stripping lengthLeading ( right ) side: 50 mm
Trailing ( left ) side: 25 mm
Strip Length Increment0.01 mm
Production rate500 pcs/h  (L=50mm, strip12.5mm at both sides)
Data library100 programs
Feeding unitServo motorized belt system
Display7" color touchscreen, English / Chinese  [ other languages on request ]
Compatible peripheralsCable prefeeder, cable stacker
Power supply
AC 110 / 220 V ± 10%, 50 / 60 Hz
Air supply0.4 - 0.7 MPa ( clean and dry air )
DimensionsMachine: L 700 x W 620 x H 500 mm
Wire straightener: 350mm
Weight80 KG

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
