6tons Copper & Aluminum Lug Hex Crimping Machine

JCW-6TH

Electric-hydraulic-pneumatic crimping machine

Copper eyelet hexagonal crimping

Low power and air consumption, high efficiency

Compact design saves space

New generation crimping machine

Low maintenance hydraulic cylinder

Inquire Now

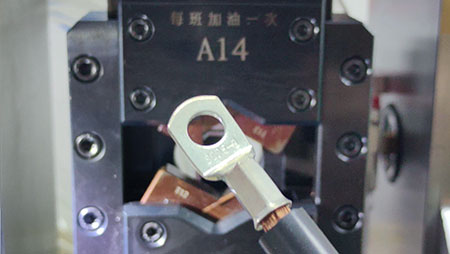

Max 35mm² Battery Lug Hexagonal Crimping

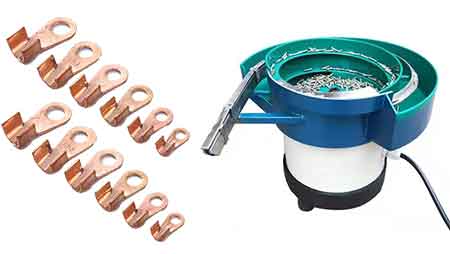

Equipped Vibrator Bowl Crimp Copper Lug

As an entry-level hydraulic hexagonal terminal crimping machine, 6TH can process wires below 35 square meters. The smart software supports setting and adjusting the crimping height directly on the touch screen, and the holding time can be set to ensure that the terminal is crimped in place and perfectly formed.

Reasonable price and powerful functions make this machine very cost-effective. Imported hydraulic cylinder is extremely stable and requires very little daily maintenance. The JCW-6TH uses hydraulic oil that meets air transport standards and WE can provide a full set of documents. All transportation methods can be selected.

The transparent acrylic protective cover fully protects the personal safety of the operator and provides an unobstructed view. The positioning rod behind the hexagonal applicator can be easily and quickly adjusted to adapt to copper lugs of different specifications. After replacing the side-opening hexagonal crimp applicator, 90-degree angled lugs can also be crimped easily.

Model	JCW-6TH Pneumatic-Hydrauilc Copper & Aluminum Lug Crimping Machine
Function	Uninsulated tubular terminal, Hexagonal crimping, Crimp height adjustment via HMI, Data library
Capacity	10 - 35 mm² [ Min AWG 10 ]
Crimping force	60 KN
Crimping length	12 mm [ other lengths on request ]
Crimp height accuracy	0.03 mm
OEM	Yes
Activation	Foot pedal / HMI
Rated power	100 W
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply	0.5 - 0.8 MPa
Dimensions	L 310 x W 350 x H 620 mm
Weight	100 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
