Servo Model 30mm² Cable Cutter Stripper

JCW-CS05B-30

Servo motor controlled cutter head

Left entry or right entry optional

Can combine with cable winder

Precise servo stripping control

Stable heavy cable processing

Automatic cutting and stripping

Inquire Now

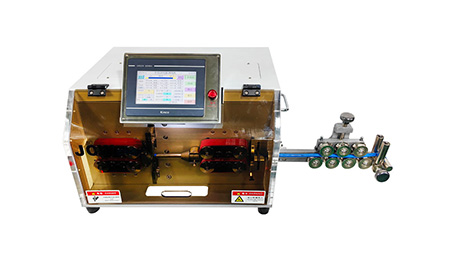

Servo Motorized Cable Cutting Stripping Machine

Servo Model 30mm² Cable Cutter Stripper

JCW-CS05B cable cut and strip machine adopts servo motor to drive the cutter head, delivering high precision and repeatability for stripping operations. Two feeding directions are available for layout adaptation: left side cable entry and right side cable entry. This machine supports pairing with a cable winder, forming an integrated production line for continuous cable processing. The servo cutter provides flexible adjustment of stripping depth and length, suitable for heavy gauge power cables in energy, new energy and electrical harness workshops.

Model	JCW-CS05B Servo Model Cable Cutter Stripper
Function	Single wire, Multicore cable, Wire measuring, Cut length, Full stripping, Partial stripping, Mid-stripping, Cut depth, Length correction, Cable rewinding ( optional )
Raw material	PVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Cable range	30 mm², 15 mm diameter
Cutting length ( L )	0.1 - 999999 mm
Cutting length accuracy	0.002 x L
Stripping length	Front full strip：1- 200mm, partial strip: 1-500m
Stripping length	Rear full strip：1- 80mm，partial strip：1-200mm
Production rate	800-1200 pcs/h
Data library	100 programs
Cutter head	Servo motorized
Multicore cable	Only outer jacket stripping
Display	7" color touchscreen, English / Chinese [ other languages on request ]
Cable feeding	Belt feeding system, 8 rollers
Compatible peripherals	Cable prefeeding machine, robot arm, conveyor belt, cable rewinding machine
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply	0.4 - 0.7 MPa ( clean and dry air )
Dimensions	L 650 x W 580 x H 460 mm
Weight	70 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
