JCW-LB10 Cable Label Wrapping Machine

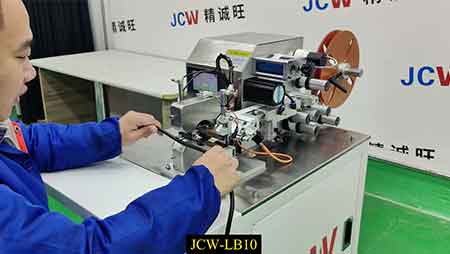

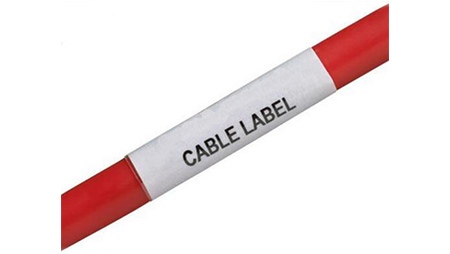

The JCW-LB10 automatic labeling machine is suitable for automatic labeling of round wires, the cable labels such as barcode labels, warning labels, instruction labels, etc. Hold the wire, step the pedal, then the machine will automatically label.

All the round wires, cables with plugs at both ends, etc. can be used. This not only changes the traditional manual labeling method, improves the efficiency of labeling, and improves the disadvantages of uneven size and wrinkles that are prone to occur in manual labeling, but also saves 3 to 5 labor. Improved production efficiency; replace slow manual labeling; avoid insufficient accuracy, personnel changes, and high labor costs.

ModelJCW-LB10 Cable Label Wrapping Machine
Wire diameter

4 - 12 mm [ can be custom ]

Labeling way

Wrap-around

Label size

W 5~40 (mm) x L 20~100 (mm)

Label roll I.D.

Max 76 mm

Label roll O.D.

Max 240 mm

Product rate

1200 - 1500 pcs/h (depends on label size and operator)

Accuracy

± 0.3 mm

Rated power120 W
Power supplyAC 110 - 220V ± 10%, 50 / 60 Hz
Air supply0.5 MPa
Dimensions

L 680 x W 600 x H 580mm

Weight65 KG
