Fully programmable wire bending machine
No damage to insulation and conductor
Smooth bending to ensure the conductive effect
7" touchscreen, user-friendly interface
Bending degrees 30°- 90°
Cable range up to 16 mm²
Patent Wire Cutting Stripping and Bending Machine JCW-CS10B

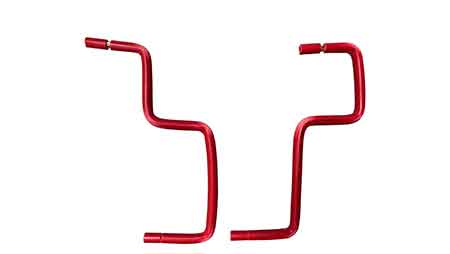

Hard wire, 16 mm², no damage to insulation and conductor
Wire bending is widely used in power distribution cabinets. Good wire bending can save the space of the power distribution cabinet, save the wires, make the wires arranged neatly, meanwhile will not cause any damage to the wires or conductors, and eliminate any hidden dangers.
JCW-CS10B is such an automatic stripping and bending machine, especially used for BV wires below 16mm². All processing parameters, such as cutting length, stripping length, and bending parameters can be input accurately via the 7" color touch screen. 4 rollers offer huge clamp force, guarantee precise feeding.

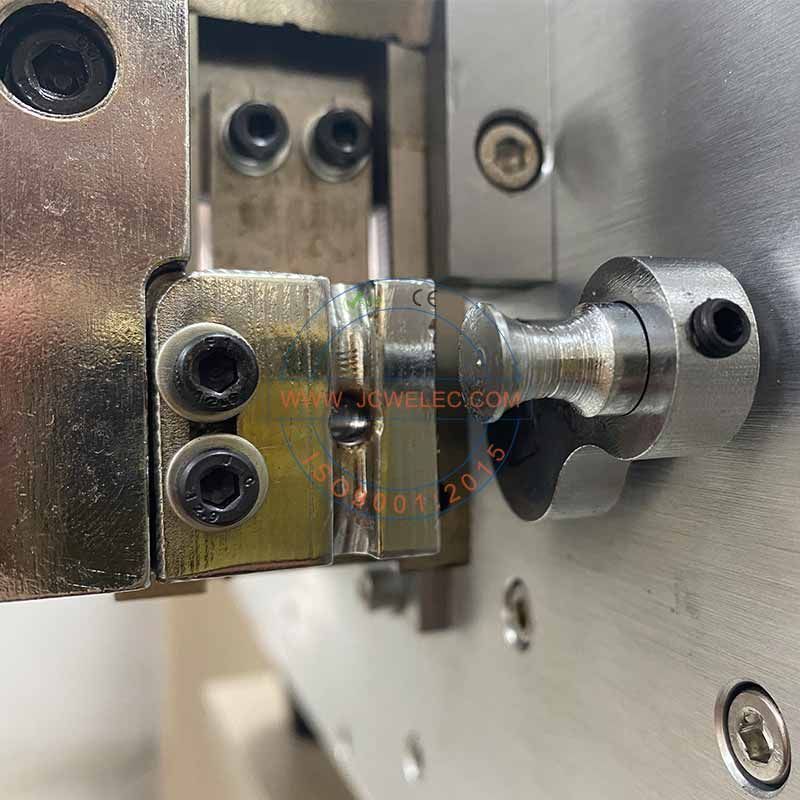

The patent unique bending device provides a rounded bending effect instead of a sharp bending at an absolute angle, ensuring that it will not cause any damage to the insulator and conductor of the wire.
JCW-CS10B Automatic Wire Stripping and Bending Machine
|Function||Wire end stripping, Wire bending, Cut depth, Horizontal bending, 30°-90°, Data library|
|Conductor cross-sections||0.5 - 16 mm² [ AWG 20 - 9 ]|
|Cutting length ( L )||0.1 - 99999 mm|
|Stripping length||Max 50 mm|
|Bending degree||30° - 90°|
|Data library||100 programs|
|Power supply||AC 110 - 220 V ± 10%, 50 / 60 Hz|
|Air supply||0.4 - 0.7 MPa ( clean and dry air )|
|Dimensions||L 510 x W 570 x H 450 mm|
Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
