Automatic Cable and Wire Cut Strip Machine [ 70mm² ]

JCW-CS17

Heavy-duty cable up to 70mm² or 18mm diameter

High-quality belt feeding system ensure precise feeding

Servo motors controlled system on cutter and roller

Imported high speed steel blade

Quickly change guide tube

Inquire Now

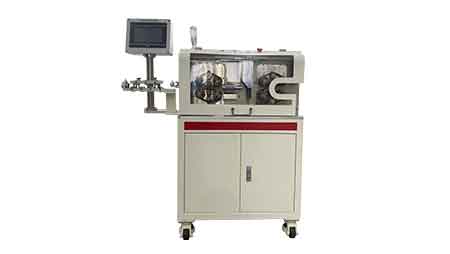

Free-standing Versatile Cable Cutting Machine

Model	JCW-CS17 Automatic 70mm² Cable and Wire Cut Strip Machine
Function	Wire measuring, Cut into length, Full stripping, Partial stripping, Length correction
Raw material	PVC, Teflon, Silicone, Low halogen, Fiberglass
Conductor cross-sections	Max 70 mm²
Cable diameter	φ5 - φ18 mm
Cutting length ( L )	0.1 - 999999 mm
Cutting length accuracy	0.002 x L
Stripping length	Front ( right ) side: 250 mm
Stripping length	Rear ( left ) side: 100 mm
Stripping accuracy	0.01 mm
Production rate	2000 pcs/h by 500mm wire length
Data library	100 programs
Display	7" color touchscreen, English / Chinese [ Other languages on request ]
Compatible peripherals	Wire prefeeder, conveyor belt
Wire feeding	Belt feeding system, 12 rollers
Power rating	1500 W
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply	0.5 - 0.8 MPa ( clean and dry air )
Dimensions	L 720 x W 650 x H 1120 mm
Weight	180 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
