Automatic Wire Cutting to Terminating Machine

JCW-CST02S

Servo motorized wire terminating machine

Precise wire cutting and stripping

User-friendly interface

32AWG fine wire

Inquire Now

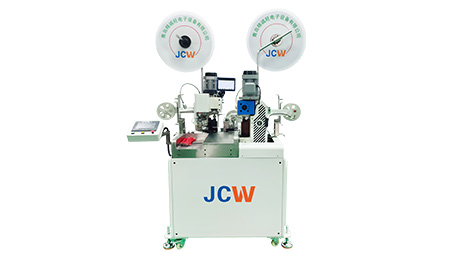

Crimp force monitor version

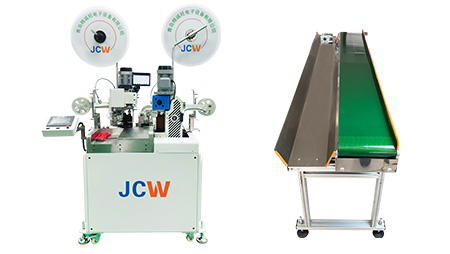

CFM & Conveyor

The JCW-CST02S is a high-precision fully automatic double-head terminal crimping machine built for stable and accurate dual-end wire termination. The standard version comes equipped with OTP applicators by default, while it can be reconfigured to support European-style moulds according to customer terminal requirements.

Driven by brand servo motors as standard, the machine delivers precise motion control for wire feeding, cutting, insulation stripping and double-end terminal crimping, ensuring consistent crimp height and reliable pull force for finished harnesses. Mitsubishi servo system is available as an optional upgrade for customers requiring premium motion performance and enhanced stability in high-volume production environments.

The machine supports optional installation of the CFM crimp force monitoring module. The CFM module carries out real-time crimp force detection during operation. It identifies crimp abnormalities and alarms automatically, blocking defective terminals to prevent non-conforming products from flowing into subsequent processes and improving overall wire harness quality control.

All processing parameters including wire length and crimping settings can be saved and quickly recalled via the touchscreen interface. It is suitable for mass production of various electronic and electrical wiring harnesses, offering great flexibility to match different terminal types and production quality standards.

Model	JCW-CST02S Fully Automatic Servo Motorized Dual-end Wire Crimping Machine
Function	Wire measuring and cut into length, both sides: stripping to crimping. Cut depth, strip length, partial strip, air detection, wire lack detection, wire knot detection, crimping detection, data library
Wire cross-section	AWG 32 ~ AWG16 ( Customizable )
Strip length	1.5 - 10 mm
Cut length ( L )	45 - 99999 mm
Cut length tolerance	± 1mm + 0.002 x L
Crimp force	20KN (2.0 tons) [ 40 KN on request ]
Detector	Wire lack, Terminal crimping, Wire knot, Air pressure [ CFM on request ]
Production rate	3000-3800 pcs/hr ( L ≤100mm )
Data library	100 programs
Display	7" touch screen, English / Chinese [ other languages on request ]
Power supply	AC 220V ± 10%, 50 / 60 Hz
Air supply	0.4 - 0.7 MPa [ Clean and dry air ]
Weight	550 KG
Dimensions	L 1410 × W 915 × H 1500 mm
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
