Flat Ribbon Cable & Single Wire Crimping to Tinning Machine

JCW-CST06A

Horizontal transfer unit moves cable, no swing

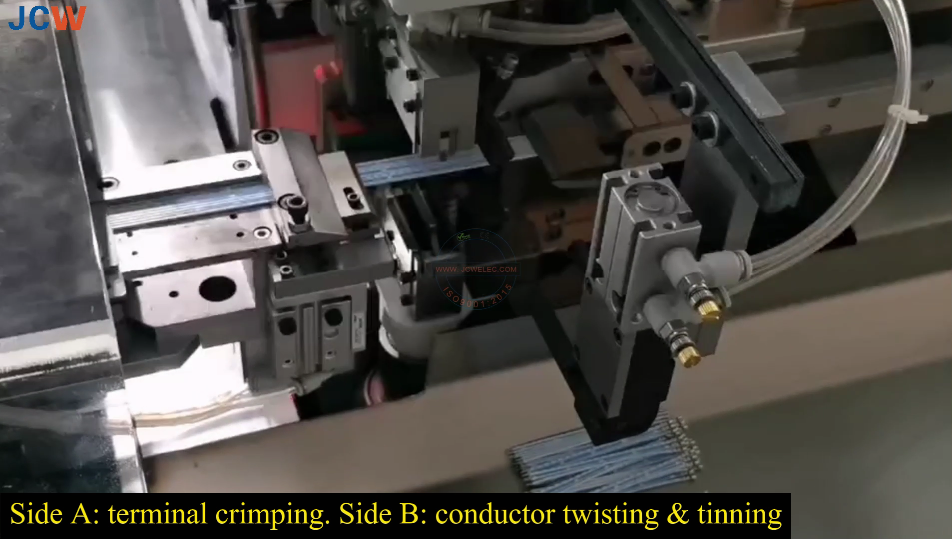

Single-end terminal crimping to tin dipping

Fully digital & programmable, short & long cable in one machine

Cutting length: 8 - 850 mm [ 1200/1500/1800mm on request ]

Both single wire & ribbon cable can be processed

Inquire Now

Single Wire Version

Ribbon Cable Version

The JCW-CST06A is an automatic terminal crimping and tinning machine upgraded from CST06. Differentfrom the rotary terminal crimping method of CST06, the CST06A uses a screw rod for horizontal wire feeding, which greatly improves the stability of the terminal crimping and greatly improve sthe stability of this machine. By replacing accessories such as cable straighteners, guide tubes and blades, the CST06A can also be used for processing ribbon cable.

The JCW-CST06A utilizes servo motor control, with a choice of motor brands: INOVANCE or MITSUBISHI. The crimping mechanism employs a horizontal linear motion rather than a rotary action, which maximizes the positional accuracy of the crimp. The machine offers high hourly throughput and is capable of processing up to five wires simultaneously—the exact number depending on the terminal type and wire gauge.

Model	JCW-CST06A Automatic Ribbon Cable Crimping to Tinning Machine
Cable type	Single wire. Flat ribbon cable ( only on request )
Ribbon cable range	2 - 16 P
Single wire range	AWG 32 - 16
Raw material	PVC, Teflon, Low halogen, etc.
Terminal type	PH / XH / EH / SCN / SM / VH, etc
Crimp force	2 tons [ 20 KN ]
Cut length ( L )	Ribbon cable: 40 - 850 mm [ 1200-1500-1800mm on request ] Single wire: 15 - 850 mm [ 1200-1500-1800mm on request ]
Cut length tolerance	0.002 x L
Strip length	Front: 7.5 mm. Rear: 11 mm
Twist length	0.5 - 11 mm
Tinning length	0.5 - 11 mm
Production rate	1000 pcs/h by 850mm cutting length, 10P ribbon cable
Data library	100 programs
Detector	Wire lack, Wire knot, Wire stripping, Terminal crimping, Air pressure
Smoke collect system	Yes
Optional peripherals	CFM, Wire unwinder, Marking system
Display	7" touch screen, English / Chinese [ other languages on request ]
Power supply	AC 110 - 220V ± 10%, 50 / 60 Hz
Rated power	2500 W
Air supply	0.5 - 0.8 MPa [ Clean and dry air ]
Weight	500KG
Dimensions	L 1750 x W 750 x H 1500mm
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
