Ultra-fine Magnet Wire Stripping Machine

JCW-ES0810

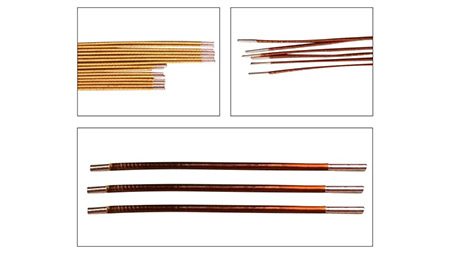

Used for handling fine single-strand and multi-strand enameled wires

Also suitable for handling triple-insulated wires

Standard conical wheels are for wire diameters of 0.2-0.65/1.0mm

Optional conical wheels are for wire diameters of 0.09-0.2mm

Vacuuming function: Optional

Inquire Now

Model	JCW-ES0810 Ultra-fine Magnet Wire Stripping Machine
Cable diameter	0.08 - 0.65 / 1mm
Stripping length	Min 3 mm
Rotate speed	5333 r/min
Rated power	120 W / 180 W
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz, 800VA
Dimensions	L 290 x W 200 x H 195 mm
Weight	6.5 KG
