JCW-HSB01 Oven Heat Shrink Tubing Processing Equipment Belt Heater

Increased efficiency, reduced cost, various applications



The JCW-HSB01 oven belt heater is a high-efficiency shrinking machine that offers a wide range of applications, it's designed to replace manual work with highly increased efficiency. This machine contains a far infrared quartz heating tube, the heating occurs at both upper and lower sides, which delivers optimal heating temperatures, performance, and control features for greater efficiency.

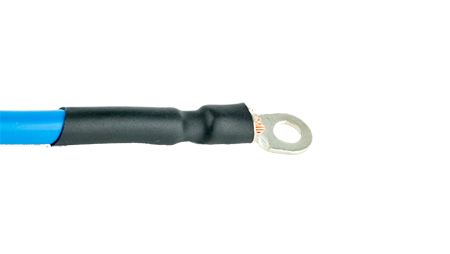

Heat shrink tubing seals and protects electrical splices, and provides mechanical protection for fluid management systems in harsh environments.

Model

JCW-HSB01 Oven Heat Shrink Tubing Processing Equipment Belt Heater

Function

Heat shrinkable tubing, PVC, POF, PP, PE shrink film

Feeding speed0 - 10
Oven size800 x 400 x 200 mm
Load weight10 KG
Rated power5500 W
Power supply
3Phases 380 V, 50 Hz
DimensionsL 1100 x W 560 x H 660 mm
Weight25 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
