Electric Heat Shrink Tubing Processing Machine

JCW-HSB2050

Electric model needs no compressed air

Apply to hook up wire harness, HV cable, etc

Use resistance wire to heat, fast heating, and low energy consumption

High-speed fan, even heat distribution

Using delay designer, heat shrink time can be adjusted

Max heating temperature 450 degrees, can be set freely

Double-layer box with high-temperature cotton

Fully covered safety guard is optional

Inquire Now

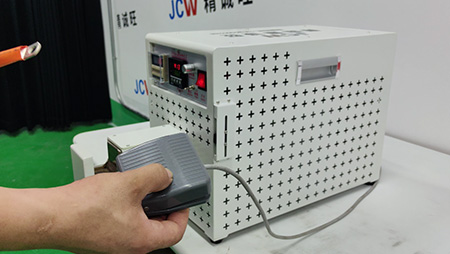

Foot switch start mode

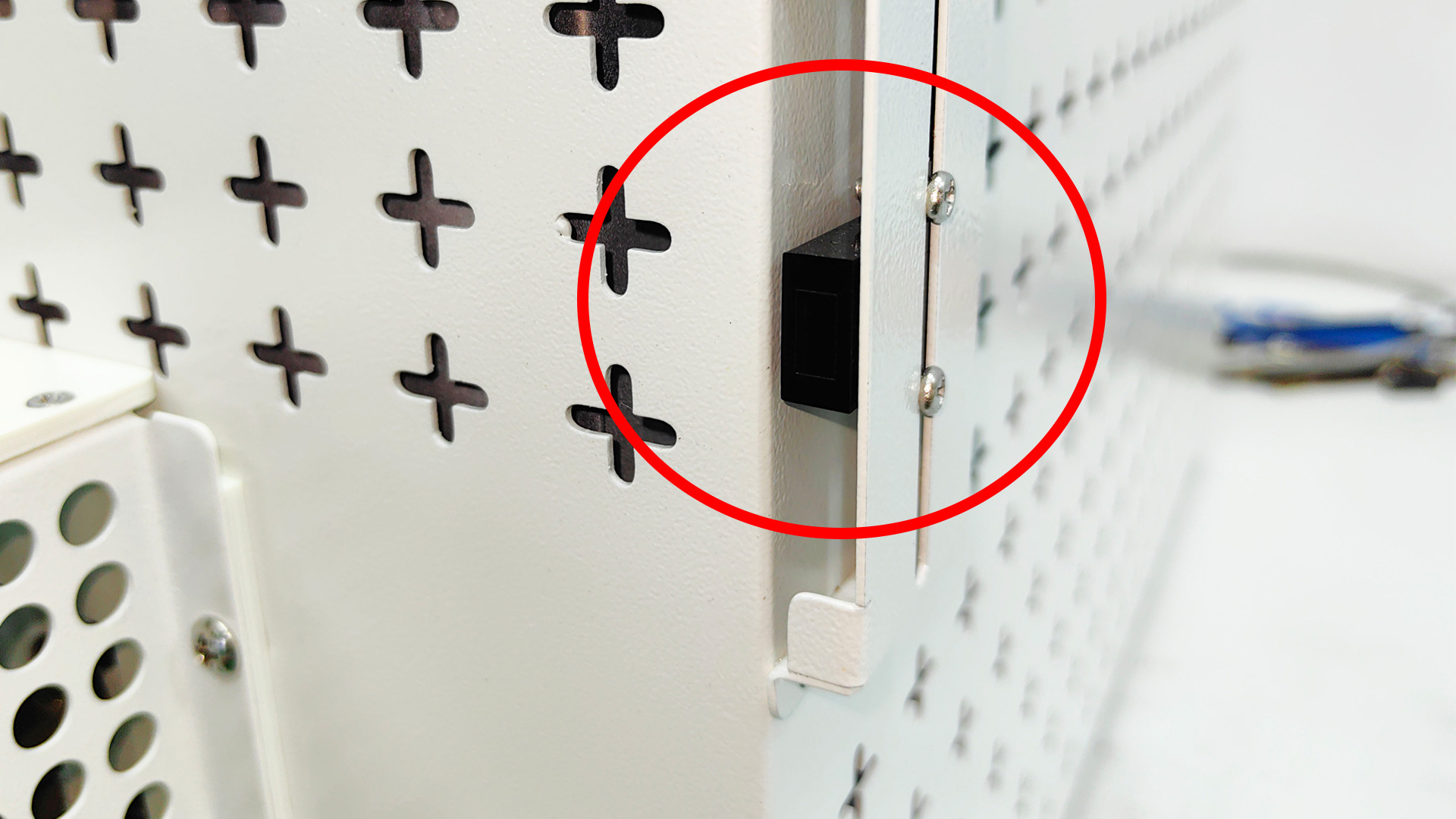

Induction start mode

The JCW-HSB2050 can process various sizes of wire harnesses and products by changing the air outlet, and its 3KW high power greatly expands the machine's versatility and adaptability.

Please provide our sales staff with pictures and dimensions of your product, and we will help you select the most suitable configuration.

The following air outlets are available for you to choose from：

W 30 x L 60 mm

W 30 x L 100 mm

W 45 x L 60 mm

W 45 x L 100 mm

W 55 x L 60 mm

W 80 x L 100 mm

Model	JCW-HSB2050 Electric Heat Shrink Tubing Processing Machine
Function	Heating temperature, heating time, changeable nozzle
Heating temperature	0 - 450℃
Heating method	Resistance wire
Heating diameter	20 - 75 mm [ On request ]
Heating length	50 - 90 mm [ On request ]
Air output volume	580 L / m, adjustable
Product rate	450 - 900 pcs/h ( depending on the product )
Startup method	Footswitch/sensor
Rated power	3000 W [ 2000W on request ]
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Dimensions	L 445 x W 220 x H 340 mm
Weight	15 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
