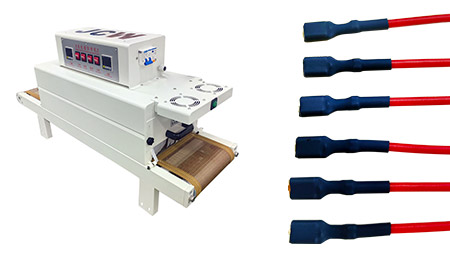

Upgraded tabletop shrinking machine
Cooling fans installed at the outlet
Infrared heating on both the top and bottom sides
Built-in air heater for consistent oven stability
Teflon braided conveyor belt, adjustable conveying speed
JCW-HSB64
Upgraded tabletop shrinking machine
Cooling fans installed at the outlet
Infrared heating on both the top and bottom sides
Built-in air heater for consistent oven stability
Teflon braided conveyor belt, adjustable conveying speed
| Model | JCW-HSB64 Benchtop Heat Shrinking Tunnel |
| Heating method | Thermal radiation, Double-sided heating |
| Oven dimensions | L 650 x W 300 x H 200 mm [ Default ] L 800 x W 480 x H 200 mm [ Optional ] |
| Heating area | L 650 x W 240 x 80 mm [ Default ] L 800 x W 240 x 80 mm [ Optional ] |
| Belt material | PTFE mesh conveyor |
| Feeding speed | 0 - 6 m / min |
| Load-bearing capacity | Max 10 kg |
| Temperature display | Digital |
| Working life | > 10000 h |
| Temperature | 260℃ |
| Hot air fan | YES |
| Cooling station | Optional |
| Rated power | 2800 W [ Default ] 3600 W [ Optional ] |
| Power supply | AC 220 V ± 10%, 50 Hz |
| Dimensions | L 1080 x W 300 x H 650 mm [ Default ] L 1200 x W 480 x H 650 mm [ Optional ] |
| Weight | 40 KG [ Default ] |
| CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
