Customizable Heat Shrinkable Sleeve Processing System

JCW-HSB65

Latest upgraded version available

Constantly working

Single or double-sides heating

Half-open shrink tunnel, digital controller

Cooling delay, emergency stop button, safe operation

Adjustable temperature, feeding speed, and heating zone width

Inquire Now

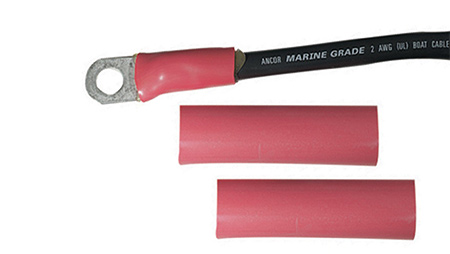

Heat Shrinkable Terminal Insulating Tubing

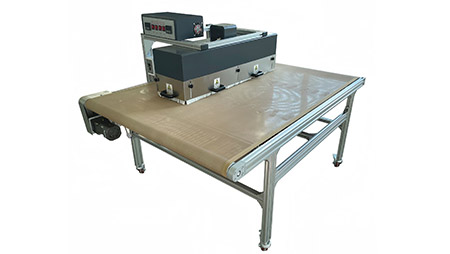

Wide Belt

The classic JCW-HSB65 heat shrinking machine features a pure white exterior. A new upgraded version is now available at the same price as the older model.

The older model used an aluminum profile bracket, while the new model uses a welded bracket, which is more aesthetically pleasing. Both brackets are detachable, saving on shipping costs, and can be quickly and easily assembled upon receipt.

Model	JCW-HSB65 Flexible Heat Shrinkable Sleeve Processing System
Heating method	Infrared heating, single-sided heating, double-sided heating
Heating pipe	8 pcs
Oven dimensions	1000 x 400 x 280 mm [ Customizable ]
Heating area	1000 x 360 x 100mm [ Customizable ]
Belt material	PTFE mesh conveyor
Belt load-bearing	20 KG
Feeding speed	0 - 6 m / min
Temperature display	Digital
Working life	＞ 10000 h
Temperature	260℃ [ 300℃ on request ]
Heater accuracy	±5℃
Hot air fan	YES
Cooling station	YES
Rated power	7.2 KW [ 4 KW optional ] [ Customizable ]
Power supply	7.2KW model: AC 380 V ± 10%, 50 / 60 Hz 4 KW model: AC (110) 220 V ± 10%, 50 Hz
Dimensions	L 1600x W 700 x H 1200 mm [ Customizable ]
Weight	120 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
