Reinforced wire twisting tool, 60W rated power
Soft wire: up to 6 mm²
Hard wire: 4 x 1 mm²
Adjustable twisting speed
Mini size, portable and ergonomic design
Short cycle time, each cycle takes 0.5s
Tight and neat twisting, avoid conductor missing

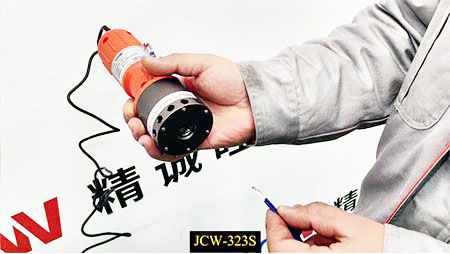

JCW-323S
Reinforced wire twisting tool, 60W rated power
Soft wire: up to 6 mm²
Hard wire: 4 x 1 mm²
Adjustable twisting speed
Mini size, portable and ergonomic design
Short cycle time, each cycle takes 0.5s
Tight and neat twisting, avoid conductor missing
Max 6mm² Wire Twister
Model | JCW-323S 6mm² Wire Twist Tool |
Function | Stranded wire, cable tie, button, foot pedal |
Capacity | Total conductor cross-sections 0.05 - 6 mm² max |
Twisting length | 5 - 30 mm [ Ideal range 10 - 15 mm ] |
Cycle time | 0.5 second [ Recommend 0.2 - 1.0 second ] |
Power supply | AC 110 - 220 V ± 10%, 50 / 60 Hz |
Dimensions | D 63 x L 248 mm. Holding position diameter 30 mm |
Weight | 0.65 KG |
CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
