Deutsch Solid Contacts Electric Crimping Machine

JCW-3TP

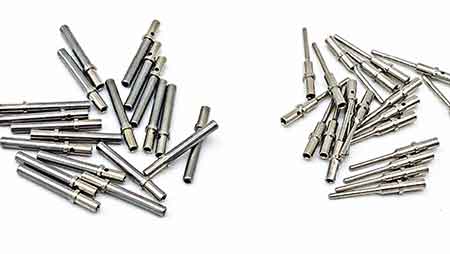

Specialized for bulk aviation solid pin contacts & Deutsch solid contacts

Four-point indent crimping for consistent, secure termination

Fully electric bench design, simple operation & easy maintenance

Cost-effective, affordable price with dependable performance

Quick die replacement for different contact specifications

Suitable for aviation, off-road and sensor wire harness production

Inquire Now

Pin Terminal Crimping Machine

JCW-3TP Deutsch Solid Contacts Electric Crimping Machine

The JCW-3TP fully electric crimping machine is purpose-built for bulk aviation solid pin contacts, especially Deutsch solid contacts. It features four-point indent crimping technology, which creates uniform, firm crimp profiles for reliable electrical connection.

This bench-top crimper delivers stable crimp quality for loose bulk solid pin terminals. Simple operation and low maintenance make it friendly for workshop operators. Compared with high-end precision crimp presses, it provides an economical solution without sacrificing core crimp performance.

It fits small-batch and medium-volume production of aviation harness, off-road vehicle wiring and sensor cables. Quick die change supports fast switching between different contact sizes.

Model	JCW-3TP Deutsch Solid Contacts Electric Crimping Machine
Function	Solid terminal pin, crimping holding time
Crimping force	30 KN
Rated Power	500 W
Wire range	0.1 - 4mm²
Terminal Length	5 - 30mm
Crimp Increment	0.1 mm
Terminal O.D.	1.5 - 6mm
Wall Thickness	0.7mm
Data Library	10 programs
Display	4.3" color HMI, English / Chinese ( Customizable )
OEM	Yes
Activation	Foot pedal
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Dimensions	L 330 x W 350 x H 240 mm
Weight	25 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
