JCW-CS03P
Integrated 4mm² wire processing machine
Wire cutting and stripping
Marker tube metering & feeding
Marker tube cutting
Thermal printing on marker tube
Automatically thread marker tube onto wire
Multiple processes finished on one unit

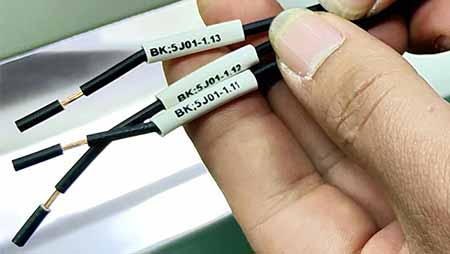

Tubing Marking & Threading
Wire Cutting Stripping, Sleeve Cutting Printing & Threading Machine
JCW-CS03P is an all-in-one machine built for wires up to 4mm².
It integrates wire cutting and stripping with complete marker tube processing functions.
It automatically measures, feeds and cuts marker tubes, prints identification content on tubes via thermal printing, then threads the printed marker tube onto finished wire.
This wire processing machine merges several independent working steps into one station, lowers manual handling work and improves consistency for harness production which needs printed marker tubes on wires.
| Model | JCW-CS03 Benchtop Wire Cutting and Stripping Machine |
| Function | Single wire,Wire measuring, Cut into length, Full stripping, Partial stripping, Mid-stripping, Wire end bending, Sleeve measuring & printing, Sleeve insertion |
| Raw material | PVC, Teflon, Silicone, Low halogen, Fiberglass, etc |
| Conductor cross-sections | 0.03 - 4 mm² [ 10mm² on request ] |
| Cutting length ( L ) | 150 - 9999 mm |
| Cutting length accuracy | 0.002 x L |
| Stripping length | 5 - 20 mm |
| Tubing length | 15 - 30 mm |
| Production rate | 450 pcs/h |
| Display | English / Chinese |
| Compatible peripherals | Wire pre-feeder, conveyor belt |
| Detection | Wire lack, sleeve knot, ribbon lack, air pressure |
| Power supply | AC 110 - 220 V ± 10%, 50 / 60 Hz |
| Air supply | 0.4 - 0.6 MPa ( clean and dry air ) |
| Dimensions | L 600 x W 620 x H 1200 mm |
| Weight | 250 KG |
| CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
