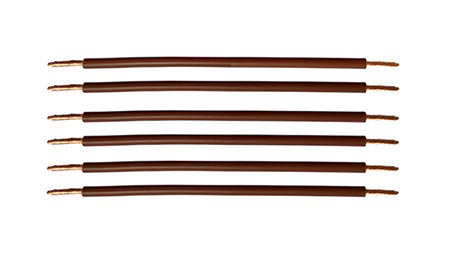

Cut Strip Twist

Cut Strip Twist

Jaw Type Wire Cutting Stripping Twisting Machine

JCW-CS09N is an upgraded jaw-type wire cutting, stripping and twisting machine designed for automatic wire harness processing.

It integrates wire cutting, insulation stripping and twisting into one production cycle.

This model is equipped with an improved stranding twisting function, which makes the twisting effect more stable, neater and more consistent than traditional twisting methods.

It helps avoid loose strands, uneven twisting and scattered copper wires, especially for multi-core wires and precision harness production.

Suitable for small to medium-volume wire processing, the JCW-CS09N provides reliable operation, easy setup and convenient maintenance.

It is an ideal choice for electronic wire, cable assembly and wire harness manufacturing.

ModelJCW-CS09N Jaw Type Wire Cutting Stripping Twisting Machine
FunctionSingle wire, Wire measuring, Cut into length, Full stripping, Partial stripping, Twist force
Raw materialPVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Capacity2 wires, 0.1 - 3 mm²  [ approx 3 mm O.D. ]
Cutting length ( L )0.1 - 999999 mm
Cutting length accuracy
0.002 x L
Production rate10000 pcs/h by 100mm wire length [ twist OFF ]
7000 pcs/h by 100mm wire length [ twist ON ]
Data library100 programs
Display4.3" color touchscreen, English / Chinese  [ other languages on request ]
Compatible peripheralsCable unwinder [ 1 station ] [ 2 stations ]
Power supply
AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply0.4 - 0.7 MPa ( clean and dry air )
DimensionsMachine: L 460 x W 700 x H 350 mm
Wire straightener: 250mm
Weight42 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
