Micro coaxial cable 0.64 to 4.0mm diameter
Rotary cutter head, single-conductor wire, multicore cable
Long stripping length up to 200mm
High production rate 1300 pcs per hour
Automatic product line, professional cable prefeeder
JCW-CS600A
Micro coaxial cable 0.64 to 4.0mm diameter
Rotary cutter head, single-conductor wire, multicore cable
Long stripping length up to 200mm
High production rate 1300 pcs per hour
Automatic product line, professional cable prefeeder
JCW-CS600A Micro Coaxial Cable Automatic Cutting & Stripping Machine

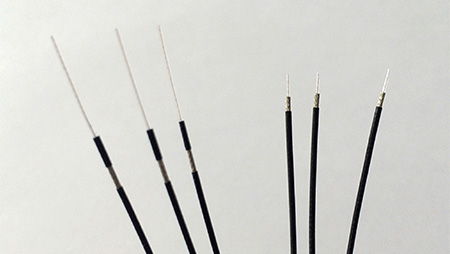

JCW-CS600A high-precision coaxial cable automatic cutting and stripping machine is specially designed for micro-coax cable ranging from 0.64 to 4mm.
The fully programmable rotary incision unit allows easy processing of high precision coaxial and multilayer applications.
The JCW-CS600A is ideal for low-volume, quick-changeover applications, and high-volume production runs, giving the best possible flexibility and productivity to your production methods.
Model | JCW-CS600A Micro Coaxial Cable Automatic Cutting & Stripping Machine |
Function | Single wire, multicore cable, micro coax cable, cut length, cut depth, data library, workbench |
Cable diameter | 0.64 - 4.0 mm |
Cutting length ( L ) | 22 - 9999 mm |
Cutting accuracy | L ± 1‰ |
Cut depth increment | 0.01 mm |
Stripping length | Lead side: max 200mm |
Rear side: max 45mm | |
Stripping length increment | 0.01 mm |
Stripping steps | 6 |
Product rate | 750 - 1300 pcs/h [ Depending on cable type ] |
Data library | 40 programs |
Power supply | AC 110 - 220 V ± 10%, 50 / 60 Hz |
Rated power | 800 W |
Display | English / Chinese [ customizable ] |
Dimensions | L 760 x W 700 x H 400 mm |
Weight | 100 KG |
CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
