15mm Length Coax Cable Automatic Cut and Strip Machine

JCW-CS600B

Ultra-short cutting length 15-200mm

Rotary cutter head, wide cable range

Cable diameter ranging from 1.0 to 6.0mm

Customizable to 8.5mm diameter coax cable

Automatic product line, professional cable prefeeder

Inquire Now

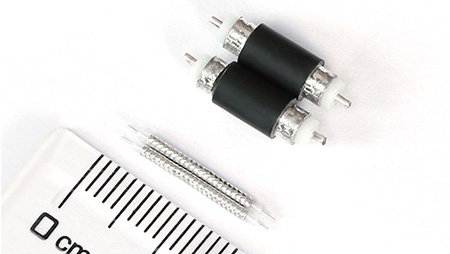

RG141 Automatic Solution

Ultra-short Coax Cable Automatic Cut Strip Machine

The JCW-CS600B fully programmable coaxial cable cutting and stripping machine is a special member of the JCW-CS family.

Due to unique clamp design, the machine allows minimum 15mm cutting length with dual-end insulation stripping. If you have specific requirements on RG141 cable processing, this is the ideal choice.

Model	JCW-CS600B Ultra-short Coax Cable Automatic Cut Strip Machine
Function	Single wire, multicore cable, coax cable, cut length, cut depth, data library, workbench
Cable diameter	1.0 - 6.0 mm
Cutting length ( L )	15 - 200 mm
Cutting accuracy	L ± 2‰
Cut depth increment	0.01 mm
Stripping length	Lead side: max 50mm
Stripping length	Rear side: max 30mm
Stripping accuracy	0.02mm
Stripping steps	6
Product rate	400 - 750 pcs/h [ Depending on cable type ]
Data library	40 programs
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Rated power	800 W
Display	7" color touch screen, English / Chinese [ customizable ]
Dimensions	L 790 x W 730 x H 400 mm
Weight	110 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
