Low-price Tin Dipping Machine

Low-price Tin Dipping Machine

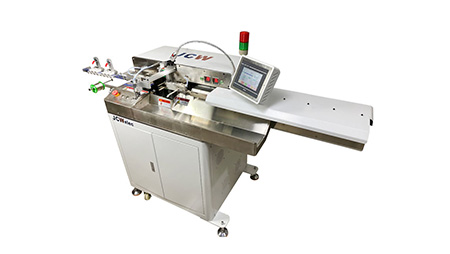

Regular: cut length 850mm. 1200/1500/1800mm customizable

Regular: cut length 850mm. 1200/1500/1800mm customizable

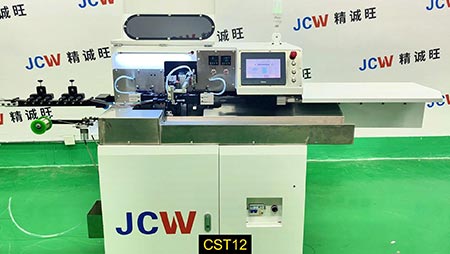

JCW-CST12 Fully Automatic Wire Stripping and Tinning Machine

Ultra-economical tinning solution for the digital consumer electronics industry

Feature of the machine

The JCW-CST12 is the best economic tinning solution. This automatic 8 wires stripping and soldering machine serves various applications: wire cutting and stripping, wire twisting, fluxing and tinning. Compared with single wire machines, the JCW-CST12 offers a high production rate of 8000 pieces per hour. The standard model offers 800mm cutting length, 1200mm-1500mm-1800mm are all optional.

High cost-effective and simple operation

The JCW-CST12 integrates high-quality components: branded stepper motors, a highly rigid transmission structure, high-speed control system. Super user-friendly interface and 7" touch screen interface offer accurate input and clear vision. Vivid detectors ensure high-quality production: wire lack detection, wire knot detection, stripping detection, air pressure detection, etc.

Various options and peripherals

- 1200mm / 1500mm / 1800mm cutting length

- Wire prefeeder for keeping proper wire tension

- Conveyor belt for stacking finished wire

- Customize HMI, language & logo

ModelJCW-CST12 Economic 8 Wires Stripping and Tinning Machine

Wire measuring and cut into length, Single-end stripping, Dual-end stripping, Wire twisting, Fluxing, Tinning. Air pressure.

Wire rangeAWG 32 - 16
Cutting length12 - 800 mm
Stripping length
0 - 10 mm
Height of tin
± 20 mm adjustable
Height of flux ± 20 mm adjustable
Optional peripheralsWire unwinder, Conveyor belt
Wire twister
Motorized digital type
Power supplyAC 110 - 220V ± 10%, 50 / 60 Hz
Air supply 0.4 - 0.7 MPa [ Clean and dry air ]
Weight310 KG
DimensionsL 1200 x W 700mm x H 1500 mm

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
