Fully automatic cable rewind solution
JCW-WB10H
Fully automatic cable rewind solution

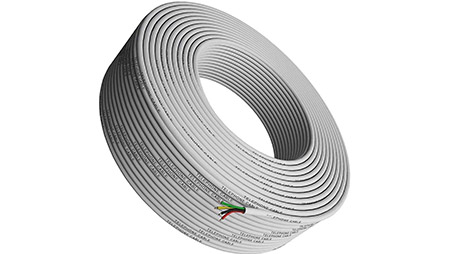

Automatic Cable Winding Binding Solution
| Model | JCW-WB10H Automatic Cable Meter, Wind, Cut & Bundle Machine |
| Function | Measure and cut cable into lengths, wind cable in order. Feeding speed, winding speed, winding cycles. Automatically feed & fix cable end. |
| Coil inner diameter | Max 50 mm |
| Coil outer diameter | Max 230 mm |
| Coil width | Max 100 mm |
| Cable diameter | Max 10 mm |
| Display | 7" color touchscreen, English / Chinese [ other languages on request ] |
| Compatible peripherals | Cable prefeeding machine |
| Rated power | 750 W |
| Power supply | AC 110 - 220 V ± 10%, 50 / 60 Hz |
| Air supply | 0.4 - 0.7 MPa ( clean and dry air ) |
| Dimensions | L 1000 x W 1000 x H 1300 mm |
| Weight | 180 KG |
| CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
