40MM Servo Motor Press Wire Stripping Crimping Machine

JCW-2TU

Latest design machine appearance

Non-insulated, side-feed, open barrel, reel terminal

AMP / TE / JAM / YAZAKI crimping applicator

Servo motor control press

PLC control system

Touch screen

Inquire Now

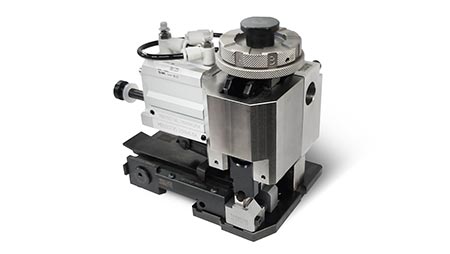

Europe-Type Strip Crimp Machine ( Mini-style Crimp Applicator)

40MM Servo Motor Press Wire Stripping Crimping Machine

JCW-2TU is a servo-driven strip and crimp workstation developed with overseas harness manufacturers in mind.

The machine’s mounting interface is built to fit standard European-style terminal applicators.

A key advantage is backward compatibility: customers may continue using their current, validated crimp dies without full replacement, cutting extra tooling investment and validation cycles.

Servo motion delivers adjustable crimp stroke and stable crimp height control, meeting the strict repeatability requirements common in international harness standards.

It supports fast applicator swap for mixed terminal production.

This platform is ideal for overseas workshops already running European applicator inventory and seeking to upgrade from pneumatic presses to servo-controlled crimping.

Model	JCW-2TU 40MM Servo Motor Press Wire Stripping Crimping Machine
Function	Single wire, Multiconductor cable, Wire stripping, Terminal crimping, Side/horizontal feed terminal
Raw material	PVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Crimp force	2 tons [ Customizable ]
Conductor cross-sections	0.03 - 2 mm² [ AWG 32 - 14 ] [ Customizable ]
Stripping length	1 - 6 mm
Accuracy	0.05 - 0.1 mm
CFM	Compatible
Crimp press	Mitsubishi servo control
Rated power	750 W
Power supply	AC 220 V ± 10%, 50 / 60 Hz
Air supply	0.3 - 0.6 MPa ( clean and dry air )
Dimensions	L 730 x W 550 x H 1350 mm
Weight	100 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
