JCW-2TR
No need to use specific strip & crimp applicator
Any of your current OTP applicators can be used
Can be revised to be compatible with mini-style applicator
Separate wire stripping & terminal crimping stations
Side-feed & end-feed type terminal applicator, 2 in 1

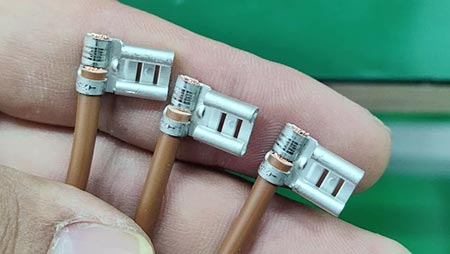

Flag crimp terminal version is on request only
Paper coiler installed. 4.3" touch screen.

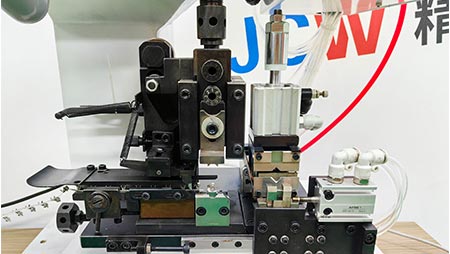

Strip & Crimp Machine
| Model | JCW-2TR Versatile Wire Strip Crimp Press |
| Function | Single wire, 2-pin ribbon cable, Wire stripping, Terminal crimping, Side/horizontal feed terminal, Flag crimp terminal |
| Wire type | PVC, Teflon, Silicone, Low halogen, Fiberglass, etc |
| Terminal type | Side-feed, End-feed, flag, etc |
| Applicator type | OTP crimp applicator [ Flag applicator custom ] |
| Crimp force | 2 tons |
| Conductor cross-sections | 0.03 - 2 mm² [ AWG 32 - 14 ] [ Customizable ] |
| Stripping length | 2 - 11 mm |
| Stroke | 30 mm |
| Rated power | 750 W |
| Power supply | AC 110 - 220 V ± 10%, 50 / 60 Hz |
| Air supply | 0.3 - 0.6 MPa ( clean and dry air ) |
| Dimensions | L 580 x W 390 x H 850 mm |
| Weight | 70 KG |
| CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
