JCW-CS04B
Upgraded version of CS04
Safety guard & sensor are standard accessories
One machine for all cables from 0.1 to 16sqmm
High-quality belt-feeding system
100 recipe with individual names
AV battery cable, multiconductor cable, PVC, Teflon, Silicone, Low halogen, Fiberglass cables

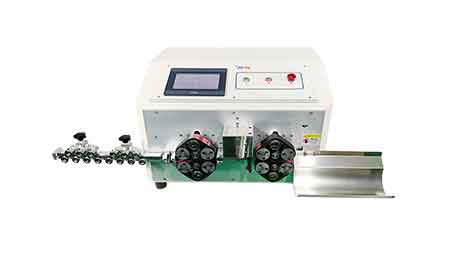

Belt Feeding Type 16sq Battery Cable Cutting Machine
The model JCW-CS04B is a new cable cutting and stripping machine, it's updated based on the JCW-CS04. Different from old model, the CS04B uses high-quality belt feeding system, but not roller feeding system. The wire guide tube can swing up and down to provide a longer tail-end stripping length. When feeding wires and stripping insulation, the right rollers can be opened and closed simultaneously to provide a longer front-end stripping length.
The machine comes standard with cable guide tubes with an inner diameter of 4-10mm. With the guide swing function, the JCW-CS04B machine can process thin wires and thick cables range from 0.1 to 16sqmm. This multifunctional wire stripping machine also provides a storage function for 100 recipes with individual names.
| Model | JCW-CS04B Belt Feed 16mm² Cable Cable Processing Equipment |
| Function | Single wire, Multicore cable, Wire measuring, Cut length, Full stripping, Partial stripping, Mid-stripping, Cut depth, Wire lack sensor, Length correction |
| Raw material | PVC, Teflon, Silicone, Low halogen, Fiberglass, etc |
| Conductor cross-sections | 16 mm² |
| Guide inner diameter | 4 / 6 / 8 / 10 mm |
| Cutting length ( L ) | 0.1 - 999999 mm |
| Cutting length accuracy | 0.002 x L |
| Stripping length | Front ( right ) side: 100 mm |
| Rear ( left ) side: 70 mm | |
| Middle strip | 13 sections |
| Production rate | 1200-1800 pcs/h by 100mm wire length |
| Data library | 100 programs |
| Multicore cable | Outer jacket stripping only |
| Display | 7" color touchscreen, English / Chinese [ other languages on request ] |
| Cable feeding | 12 rollers driven belt system |
| Blade type | V-blade / radius blade |
| Compatible peripherals | Cable prefeeding machine, robot arm, conveyor belt |
| Rated power | 1600 W |
| Power supply | AC 110 - 220 V ± 10%, 50 / 60 Hz |
| Air supply | 0.4 - 0.7 MPa ( clean and dry air ) |
| Dimensions | Machine: L 650 x W 580 x H 450 mm |
| Wire straightener: 350mm | |
| Weight | 65 KG |
| CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
