Reinfoced 4 Wires Automatic Cut & Strip Machine

JCW-CS06F

Single wire model of CS06

Process 4 single wires in one work step

Each wire max 2.5mm²

High productivity, increased efficiency

Inquire Now

4-Wires Cutting & Stripping Machine

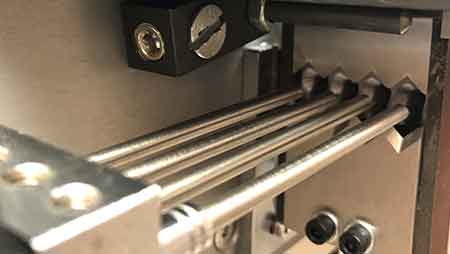

The JCW-CS06F is a model derived from JCW-CS06, specifically designed for high-speed processing of single wires. By adopting a 4-wire straightener, guide tube and Multi-V blade, this model can achieve a production speed of more than 10,000 wires per hour while ensuring the accuracy of cutting and stripping.

Model	JCW-CS06F 4 Wires Automatic Cut & Strip Machine
Function	Single wire, Multicore cable, Wire measuring, Cut length, Full stripping, Partial stripping, Mid-stripping, Cut depth, Wire run-out sensor, Length correction
Raw material	PVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Conductor cross-sections	Max 2.5mm² x 4 wires
Cutting length ( L )	0.1 - 999999 mm
Cutting length accuracy	0.002 x L
Stripping length	Front ( right ) side: 150 mm [ partial stripping ]
Stripping length	Rear ( left ) side: 70 mm [ partial stripping ]
Middle strip	13 sections
Production rate	10000 pcs/h by 100mm wire length
Data library	100 programs
Display	4.3" color touchscreen, English / Chinese [ other languages on request ]
Cable feeding	6 rollers
Compatible peripherals	Cable prefeeding unit, robot arm, cable stacker
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply	0.4 - 0.7 MPa ( clean and dry air )
Dimensions	Machine: L 560 x W 470 x H 370 mm
Dimensions	Wire straightener: 250mm
Weight	45 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
