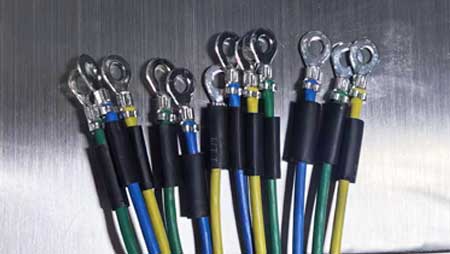

Multicore Cable Strip Crimp to Heat Shrinkable Tubing Insertion

This upgraded JCW-2TP workstation inherits all core functions of the standard sheathed cable processor.

It still completes inner core stripping and conductor alignment before crimping, with custom wire arranging jigs tailored for each cable specification.

The major upgrade is the integrated heat shrink tube feeding and threading module.

After terminal crimping, the machine automatically feeds and positions heat shrink tubing over the termination point in sequence.

It removes separate manual sleeving steps, streamlining the full workflow for insulated, strain-relieved multicore cable assemblies.

It is intended for harness batches that require heat shrink protection on every crimped contact, widely used in control and signal cable production.

Model

JCW-2TP Tube

Multicore Cable Strip Crimp to Heat Shrinkable Tubing Insertion

Function

Multiconductor cable, Inner wire stripping, Terminal crimping, Heat Shrinkable Tubing Measure+Cut+Insert, Stripping length, Cut depth, Crimping depth, Crimping position, Robot arm, CFM

Raw materialAV, AVS, AVSS, CAVUS, KV, KIV, UL, PTFE, etc
Terminal typeSide-feed / End-feed open barrel terminal
Crimp force2 tons [ 4 tons on request ]
Crimp stroke30 mm
Stripping length0.5 - 10 mm [ Customizable ]
Stripping accuracy0.05 - 0.1 mm
Transfer accuracy0.05 - 0.1 mm
Wire rangeAWG 22 - AWG 10
Cycle time 4.5 seconds
CFMOptional
Rated power2500 W
Power supply
AC 220 V ± 10%, 50 / 60 Hz
Air supply0.4 - 0.6 MPa ( clean and dry air )
DimensionsL 1140 x W 820 x H 1400 mm
Weight150 KG
CE-ConformityComplies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
