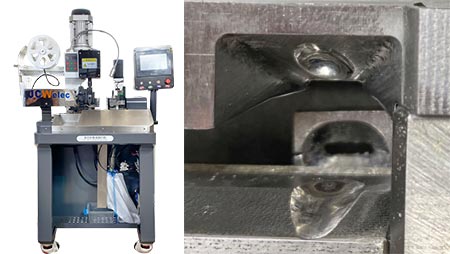

Standard Version

Standard Version

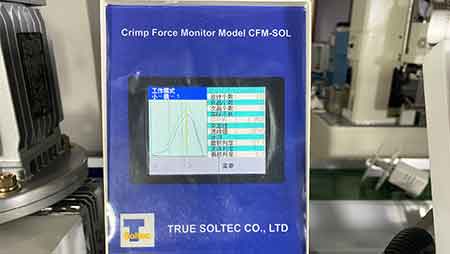

CFM Version

CFM Version

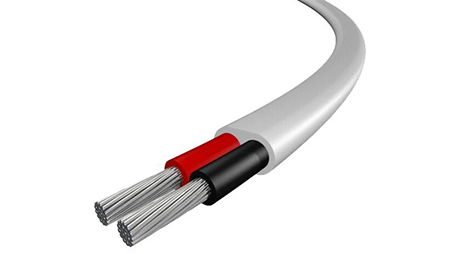

Custom 2-core Version

Custom 2-core Version

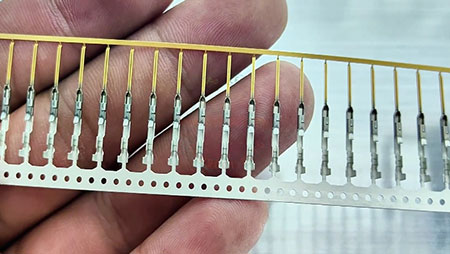

2 Terminal Carrier Strip Version

2 Terminal Carrier Strip Version

JCW-2TP Versatile Multiconductor Cable Stripping and Crimping Machine


Wide range

The JCW-2TP stripping crimping machine plays an important role in the multicore cable strip & crimp machine family. Due to smart design, different from the standard model JCW-2TN, the JCW-2TP is capable to process demanded cables, and the outer sheath stripping length is not limited strictly. The numbers of inner cores are freer.


Please contact our sales and supply your cable info, we will offer high price-performance ratio solution.

Model

JCW-2TP NEW ! Multiconductor Cable Stripping and Crimping Machine

Function

Multiconductor cable, Inner wire stripping, Terminal crimping, Side- / End-feed applicator, Stripping length, Cut depth, Crimping depth, Crimping position, Robot arm, CFM

Raw materialPVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Crimp force2 tons [ 3 tons on request ]
Stroke30 mm
Sheath pre-strip length2 - 4 cores: minimum 13.5 mm
5 - 15 cores: minimum 25 mm
Inner stripping length0.5 - 10 mm
Inner cores numbers2 - 20 cores [ Customizable ]
Inner cores diameterφ0.6 - φ 4.0 mm
Product rate 700 - 1000 pcs/hr
CFMOptional
Rated power1500 W
Power supply
AC 220 V ± 10%, 50 / 60 Hz
Air supply0.4 - 0.6 MPa ( clean and dry air )
DimensionsL 850 x W 550 x H 1350 mm
Weight150 KG
CE-ConformityComplies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
